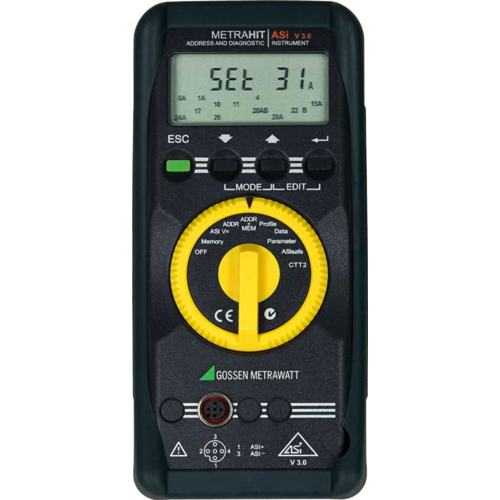

Gossen Metrawatt METRAHIT Asi v3.0 ອຸປະກອນແກ້ໄຂອິນເຕີເຟດ AS (2 ~ 35 V; 0 ~ 150 mA)
Addressing Range:
Slave address selection & setting: 0–31, 1A–31A, 1B–31B
Voltage Measurement Range (DC): 2 … 35 V
Current Measurement Range (DC): 0 … 150 mA
Voltage Accuracy: ±(3.5% + 2 digits)
Current Accuracy: ±(5% + 2 digits)
Key Measurement & Diagnostic Functions:
Voltage measurement on AS-i line
Operating current measurement of AS-i slaves
Test of digital & analog I/O data
Slave parameter setting & echo read-back
Slave profile readout (IO, ID, ID2)
ID1 code read & write
Diagnostics for CTT2 slaves
ASIsafe diagnostics for safety-related slaves
Storage of complete network configurations
Display / Interface: Handheld portable tester
Power Supply: 4 × AA batteries (LR6, 1.5 V)
Dimensions (W × H × D): 84 × 195 × 35 mm
Weight: approx. 200 g
