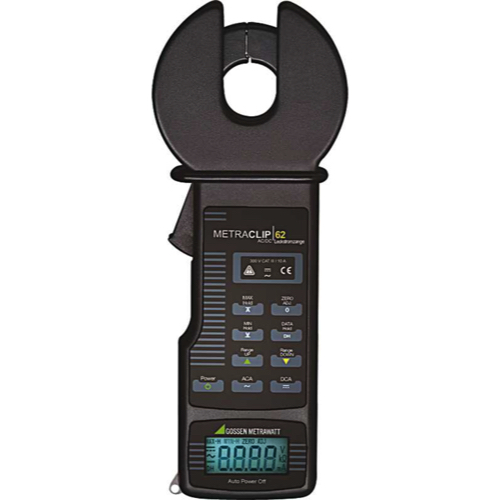

Gossen Metrawatt METRACLIP 62 ເຄື່ອງຍຶດກະແສໄຟຟ້າດິຈິຕອນສຳລັບການຮົ່ວໄຫຼ ແລະ ການວັດແທກກະແສໄຟຟ້າໃນການສາກໄຟ (1 mA~10 A AC TRMS / DC)
Measuring Ranges
A AC TRMS with automatic zero balancing
Meas. Range: 200 mA, 2000 mA, 10 A
Input: 0~199.9 mA, 0~1999 mA, 0~9.99 A
Resolution: 100 uA, 1 mA, 0.01 A
Accuracy at 18~28 °C, max. 80% relative humidity:
±1.0% rdg. ±5 digits
±1.0% rdg. ±5 digits
±1.0% rdg. ±10 digits
A DC with automatic zero balancing
Meas. Range: 200 mA, 2000 mA, 10 A
Input: 0~199.9 mA, 0~1999 mA, 0~9.99 A
Resolution: 100 uA, 1 mA, 0.01 A
Accuracy at 18~28 °C, max. 80% relative humidity:
±1.0% rdg. ±3 digits
±1.0% rdg. ±3 digits
±1.0% rdg. ±10 digits
Reference Conditions
Ambient temperature relative humidity: +23°C±5 °C max. 80%
LCD
Display: 7-segment characters
Number of places: 3½ digits, max. display 1999
Sampling rate: Digital display: 1.6/s
Overflow display: OL appears
Display for DATA HOLD: DH appears
Power Supply
Batteries: 2 x LR6 (AA size)
Service life: with alkaline-manganese batteries: approx. 120 hours
Battery test: Symbol B is displayed automatically if battery voltage is too low
Automatic shutdown: the device turns itself off automatically 10 minutes after it has been switched on.
Mechanical Design
Clip opening max. dia. 18 mm
Dimensions W x H x D: 76 mm x 194 mm x 30 mm
Weight approx. 350 g with batteries
