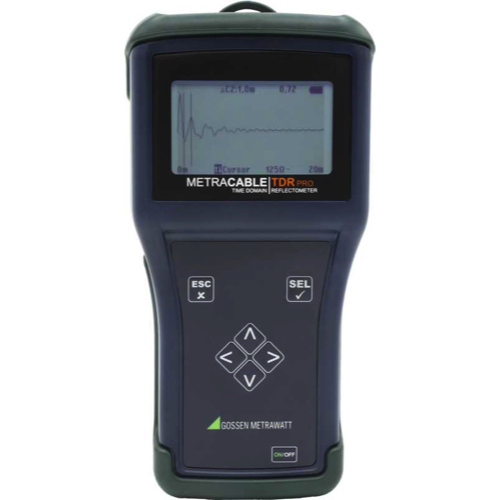

Gossen Metrawatt METRACABLE TDR PRO ເຄື່ອງວັດແທກການສະທ້ອນຂອງໂດເມນເວລາ
Weight: Approx. 390 g (without batteries)
Protection: IP 52
Display: LCD, monochrome, luminous, 240 x 128 pixels, adjustable on-time and contrast for background illumination
Connections: 2 ea. 4mm banana plug safety sockets
Power Supply: 4 ea. LR6 battery, 1.5 V, type AA or 4 ea. rechargeable NiMH, 1.2 V, type AA
Interface:
Bluetooth®
Frequency range:
2.402 GHz … 2.480 GHz
Transmission intensity: Class 2, +1.5
dBm BDR, –1 dBm EDR, +0,5 dBm LE
Internal Memory:
Up to 32 entries in the cable database
Up to 510 measurements in the instrument
Menu language: German, English, French
Signal type: Symmetrical search signal
Range: ≤14 km
Accuracy: +1% ± pixels at 0.66 VF
Resolution: 3.125 ns or 0.3 m depending on cable
Output pulse: Max. 20 V pp
Pulse lengths: 12, 25, 50, 100, 200, 500, 1000 and 2500 ns
Velocity factor: Variable from 0.2 to 0.99
in steps of 0.01
Impedance: 50, 75, 100, 125 Ω
Signal type: Symmetrical
Magnification factor: In steps of 6 dB
