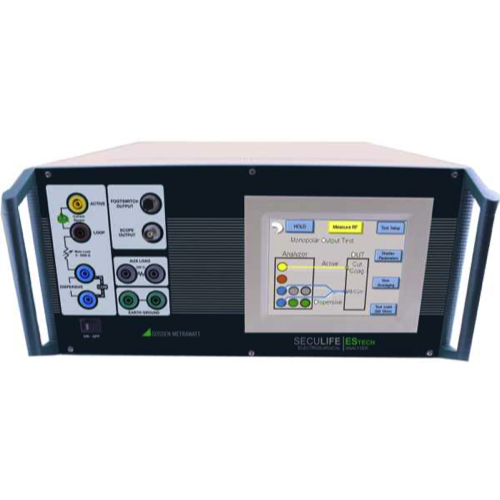

Gossen Metrawatt M695F ເຄື່ອງວິເຄາະເຄື່ອງກຳເນີດໄຟຟ້າຜ່າຕັດ TRMS ລະດັບສູງ (5 ~ 5500 Ω)
Calculated Ranges
Load voltage
Range: 0 … 1000 VRMS
Resolution: 1 V
Accuracy: ± 5%
Power
Range: 0 … 999.9 W
Resolution: 0.1 W
Accuracy: ± (4% of reading + 1W)
Crest factor: 1.4 – 500, Resolution: 0.1
RF Measurement/Testing
Calculated Ranges
Load voltage:
Range: 0 … 1000 VRMS
Resolution: 1 V
Accuracy: ± 5%
Power
Range: 0 … 999.9 W
Resolution: 0.1 W
Accuracy: ± (4% of reading + 1W)
Crest factor: 1.4 – 500, Resolution: 0.1
Characteristics
Input:
Impedance: 0 … 5500 Ω
Connection: 4 mm safety jack
Maximum voltage: 10 kV
Frequency: 10 kHz …10 MHz
Method: Pearson current to voltage converter, 0.1 V : 1 A
Voltage
pk, pk – pk: 2.0 … 1000.0 mV
Resolution: 0.1 mV
Current:
Range: 2 … 7000 mA RMS
Resolution: 1 mA RMS
Load Bank Specifications
Maximum current
0 Ω: 8 A RMS external load
Using “ACTIVE” and “LOOP” terminals only
5 – 5500 Ω: 3.5 A RMS internal or internal + external load
Internal load selection
Range: 0 … 5500 Ω, 5 Ω steps
Resolution: 5 Ω
Accuracy: 1% ±0.5 Ω, non-inductive
Power rating:
< 50 Ω: 400 W
50 to < 800 Ω: 500 W
≥ 800 Ω: 300 W
Duty cycle: 10 seconds on, 30 seconds off
Load cooling: Dual 120 mm variable speed fans (controlled by load temperature or input power measurement)
Resolution: 0 … 5500 Ω
Accuracy: 1 Ω
