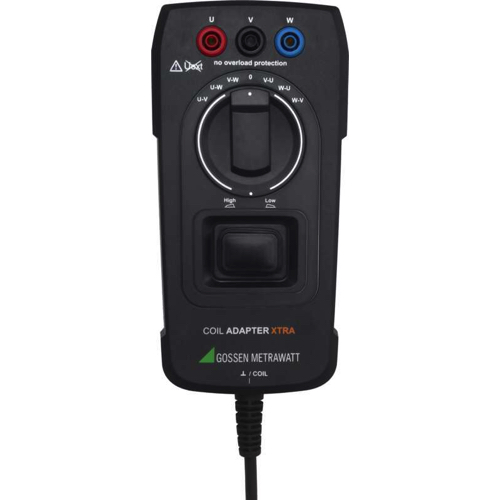

Gossen Metrawatt Coil Adapter XTRA ອະແດບເຕີສຳລັບການກວດຈັບວົງຈອນສັ້ນລະຫວ່າງການລ້ຽວ (10 μH ~ 5 H)

Application: Inter-turn short circuit detection (Surge Test) for coils and windings.

Inductance Range: 10 μH to 5 H (at 100 Hz).

Surge Voltage: 1000 V (in combination with METRAHIT IM series).

Compatible Power Ratings: Universally suitable for electric machines from approx. 160 VA to 80 MVA (3-phase machines at 400 V)

Connection: Simultaneous connection to 3 coils (U, V, W terminals).

Operation Mode: Semi-automatic measurement sequence.

Switching: Rotary switch for coil selection and automatic polarity reversal (to compensate for remanence effects).

Compatibility:

METRAHIT IM XTRA

METRAHIT IM E-DRIVE

Interface: Combined connector plug for METRAHIT IM with automatic rotary switch position detection.
