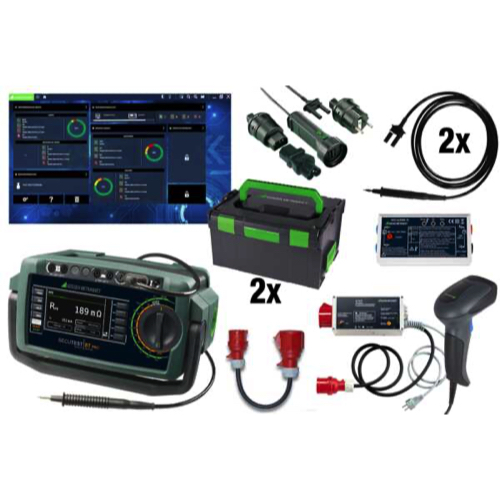

Gossen Metrawatt 3P/SCHWEISS PAKET SECUTEST ST PRO ຊຸດເຄື່ອງມືທົດສອບມາດຕະຖານ (RPE 10 A)
Base Instrument: Includes the high-performance SECUTEST ST PRO (M707B) featuring a 4.3" color touchscreen and specialized test inputs.
Welding Unit Testing: Includes the SECULOAD N (Z745R) test adapter for testing open-circuit voltage at welding units per IEC 60974-4 / VDE 0544-4.
3-Phase Current Testing: Includes the AT16-DI (Z750A) adapter for testing 3-phase 16 A devices using the differential current method.
10 A High-Current RPE: Features the 10 A RPE test current (G01) for low-resistance protective conductor measurements required for heavy-duty machinery.
Software License: Comes with the IZYTRONIQ Business Professional license for high-end management of welding equipment and industrial machinery data.
Database Expansion (DB+): Includes the Z853R expansion, enabling the creation of up to 24 user-defined sequences and 1200 test steps.
Barcode Reader: Includes the Z751A USB barcode scanner for 1D/2D codes, allowing for instant DUT identification and data entry.
Heavy Duty Storage: Set is supplied with two SORTIMO L-BOXX (Z503D) cases to organize the instrument and the extensive array of adapters.
Extended Connectivity: Includes the PC2 (Z745D) probe with a 2-meter cable and the KS17-ONE cable set for versatile voltage measurements.
Dual-Probe Support: Feature H01 is included, allowing for 2-pole measurements using a second test probe simultaneously.
Analog/Digital Inputs: Includes the I01 feature with additional measuring inputs for temperature sensors or current clamps via V-COM sockets.
CEE Adapter Compatibility: Includes the CEE16/CEE32 (Z750F) adapter cable for connecting various 5-pole 3-phase plugs to the test system.
Insulation Resistance: Measuring range up to 300 MΩ with adjustable test voltages to ensure safety in diverse industrial environments.
Leakage Current Methods: Fully supports Direct, Differential, and Alternative (equivalent) leakage current measurements for industrial DUTs.
Active Power Analysis: Measures load current (up to 16 A), active power, apparent power, and power factor during function tests at the test socket.
Specialized PRCD Sequences: Pre-programmed sequences for testing 30 mA PRCD-S and PRCD-K, including trip-time (ta) measurement.
Antimicrobial Housing: Features a lemongreen impact-resistant housing with antimicrobial properties and an integrated rubber protector.
High Capacity Storage: Internal memory capable of storing 50,000 data records, ideal for large industrial facilities or service providers.
Dual USB Master Ports: Allows for simultaneous connection of the included barcode reader and an optional thermal printer for on-site reporting.
Safety Category: Engineered to 300 V CAT II; includes a safety shutdown for differential currents and protective conductor measurements.
