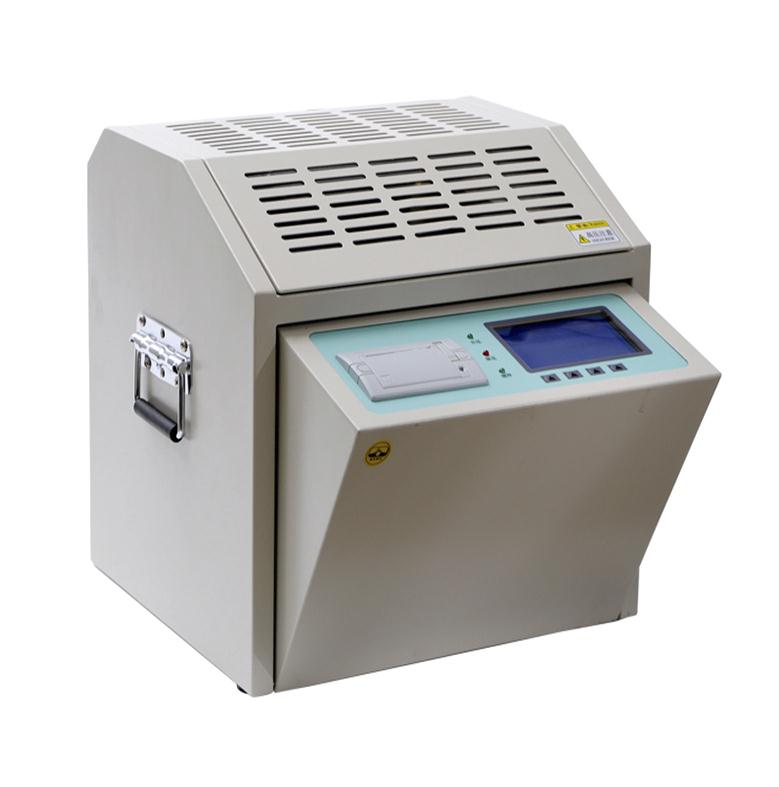

GOLDSOL YJJ-601A Insulation Oil Tester (0~80KV)

Rated power supply: AC 220V±20% 50/60Hz

Output voltage: AC 0~80KV

Rate of voltage rise: 2.0KV/S, 3.0KV/S for changing, error: 0.2KV/S

Measuring precision: 3 class

Times of withstand voltage: 1-6

Stirring time: 5~90 seconds

Stewing time: 1-15 minutes

Capacity: 1.5KVA

Power: < 200W

Environment temperatures: 0-40℃

Relative humidity: ≤85%RH

Size: 410×390×380mm3

Weight: 26kg

Accessories

Oil cup: 1

Power supply cable: 1

Standard gauge: 1

Magnon: 2

Tweezer: 1

Earth wire: 1

Fuse (3A): 2

Print paper: 1

Operating manual: 1

YJJ-601A (80KV) & YJJ-601B (100KV) is new developed according to the national standard GB507-2002 and IEC60156 (IEC156) Insulating Oil Dielectric Strength Testing Method .LCD screen can display test procedure and test result. All the human interaction operations complete by the rotating mouse .It is very easy for customers to measure the breakdown voltage. It can print the test result.  The instrument is easy to operate and it has beautiful appearance, high measurement accuracy, strong anti-interference ability, it is safe and reliable.
