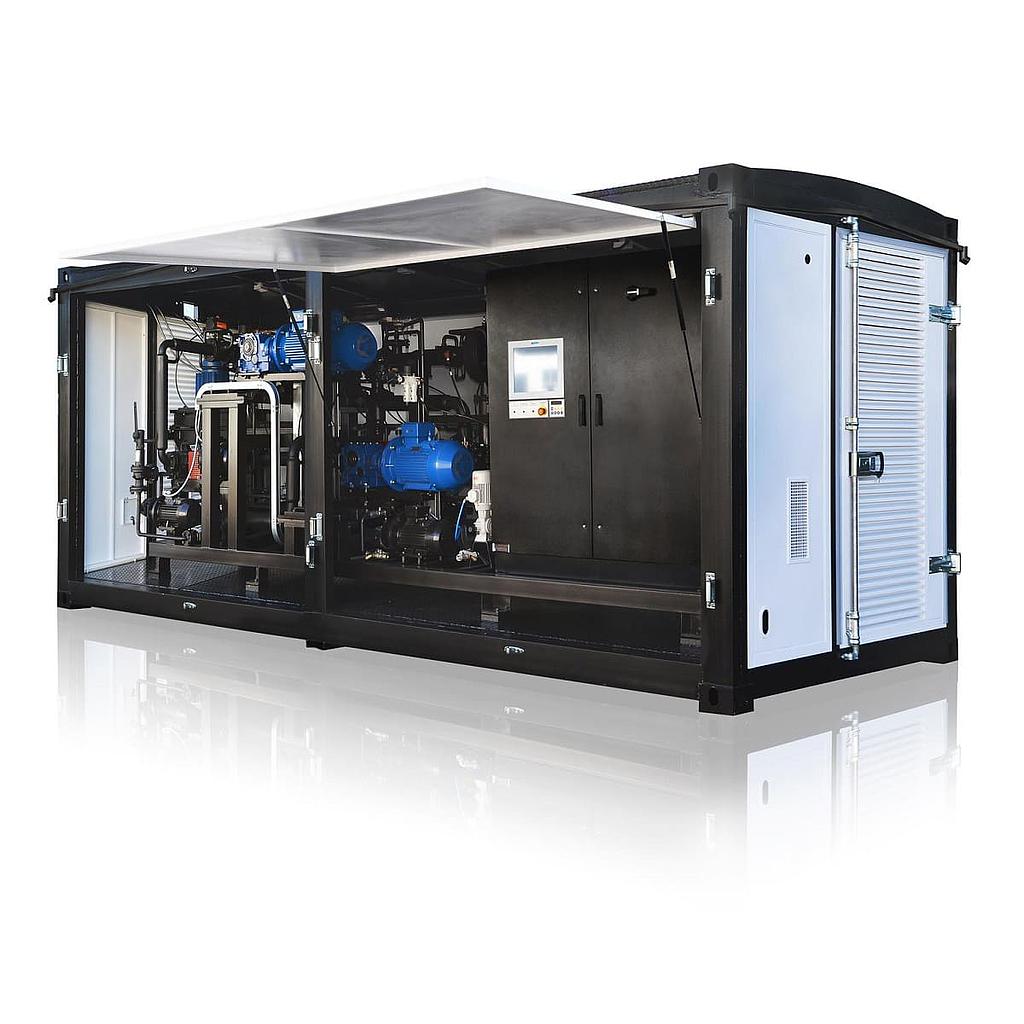

GlobeCore USB-3-16-m3-h ຫນ່ວຍບໍລິການແກ້ໄຂ bitumen (16 m3/h; 157 kW)

Minimum production capacity, m³/hour: 16

Amount of polymer per 1м³ of bitumen, kg: 10–60

Amount of plasticizer per 1 m³: 10–100

Amount of adhesive additive per 1 m³ of bitumen, liters (max): 10

Operation mode: Continuous

Nominal power, kW:

• mill: 2 х 55 = 110

• bitumen pumps: 2 х 18 = 36

• plasticizer pump: 1.1

• adhesion additive pump: 0.25

• screw elevator drive: 3

• weight elevator and screw elevator driver: 0.43

• screw mixer drive: 5.5

• total: 157

Power supply:

• voltage, V: 380

• AC frequency, Hz: 50

Dimensions without components removed for transportation (L/H/W), mm: 6050/2570/3360

Max weight, kg: 5860
