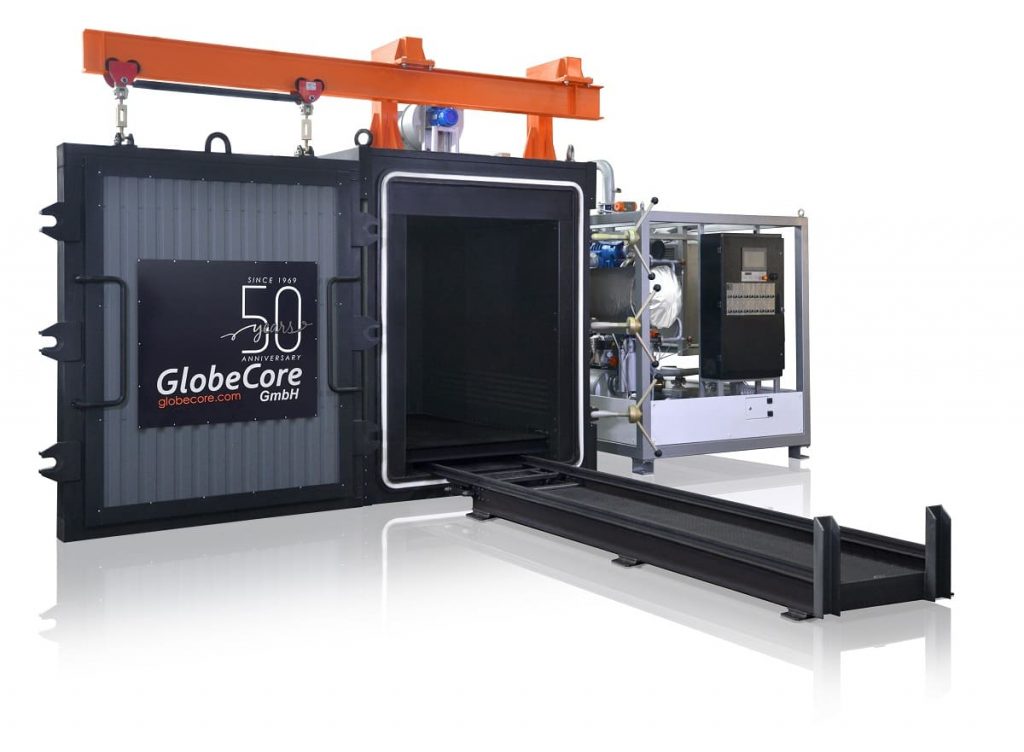

Drying chamber
Internal dimensions, mm, max:
– depth: 2,000
– width: 1,300
– height: 1,600
Heating section
Heater power, kW: 45
Temperature adjustment range, °С: 20…120
Quantity of thermal electric heaters, pcs: 15
Vacuum section
Capacity, m3/h: 1,000
Total power level of engines, kW: 11
Achieved vacuum level, mbar: 1
Circulation system
Capacity, m3/h: 2,000
Fan power, kW: 2.2
Exhaust system
Capacity, m3/h: 2,000
Fan power, kW: 1.1
Condensation system
Chiller power, kW: 3.0
Cooling performance of chiller, kcal/h: 6,000
Condensation area, m2: 7.5
Heat exchanger (condenser) type: shell-and-tube
Pneumatic system
Compressor power, kW; 1.1
Pressure, bar: 9
