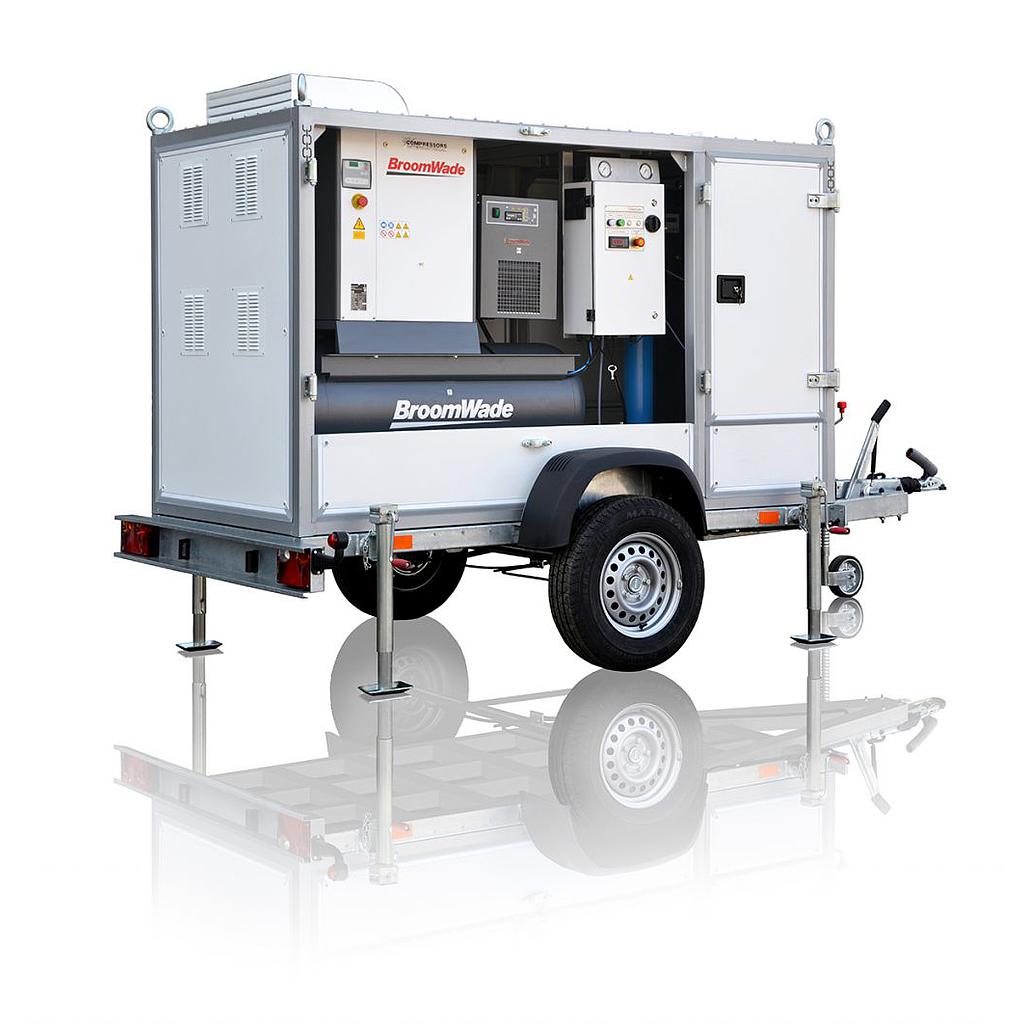

GlobeCore UOV ຫນ່ວຍບໍລິການສະຫນອງອາກາດທີ່ຖືກບີບອັດ (0.7 MPa (psi); 5.5 kW)

Operating pressure, MPa (psi): 0.7 (101.5)

Compressed air temperature range, 0С (0F): +5…+40 (+41…+104)

Operation mode: Continuous (duty ratio=100%)

Residual content of oil in the air, max, g/m3 (lb/gal): 0.001 (8.34⋅10^-9)

Simultaneous hose connections: 2

Max power requirement, kW: 5.5

Three phase 50 Hz AC voltage: Customizable

Compressor assemble air tank volume, liters (gal): 270 (71)

Dew point, 0С (0F): -70 (-94)

Dimensions, mm (in) max:

– length: 3910 (154)

– width: 1950 (77)

– height: 2150 (85)

Weight, kg (lbs) max: 1200 (2645)
