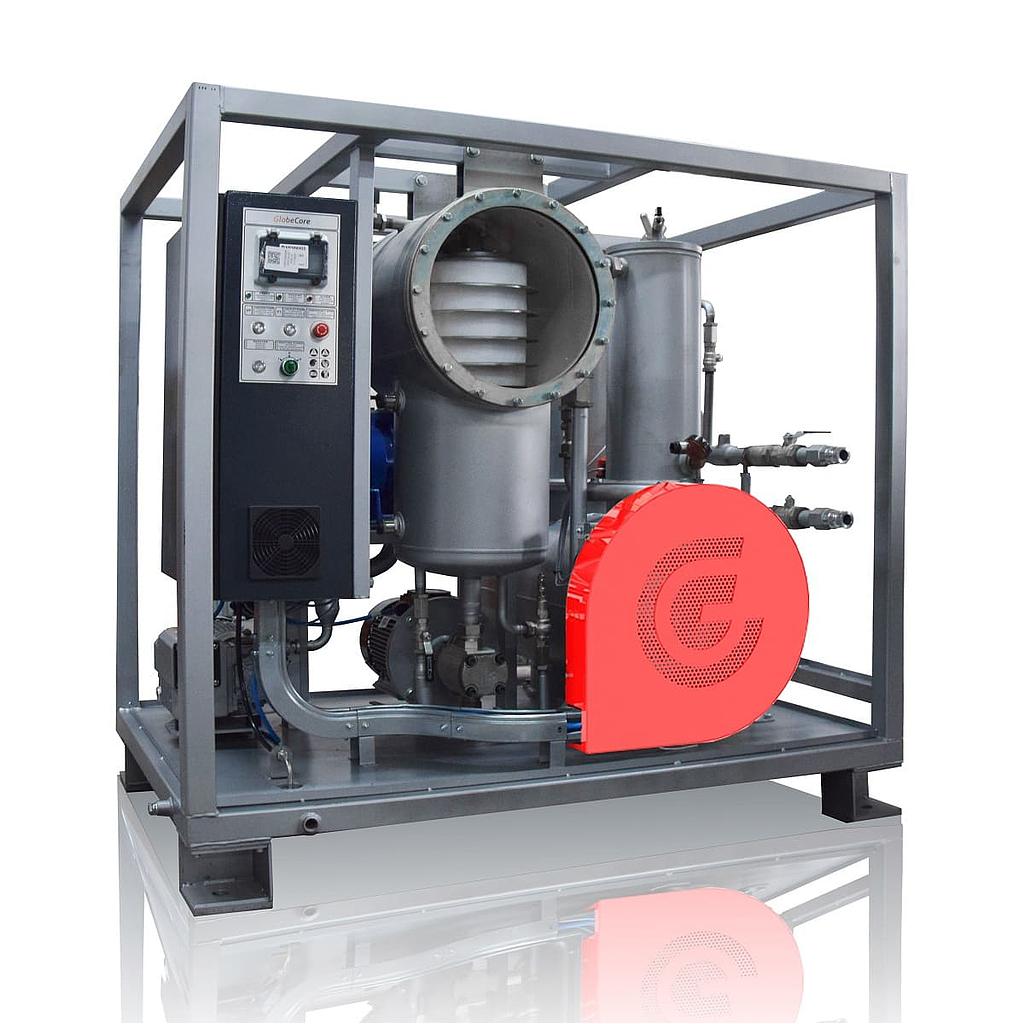

GlobeCore СММur-1L ໂຮງງານນ້ໍາມັນມືຖື (1.0 m3/h, 60°С)

Processing rate, m3/hour: 1.0

Max oil output temperature in heating mode, °С: 60

*Processed oil parameters (initial moisture less than 100 ppm):

– filtration, μm: 5

– minimum dielectric strength, kV: 75

– ISO 4406 purity class: -/14/12

Output height relative to the outlet, meters: 20

Max input pressure, Mpa: 0,1

Max output pressure, Mpa: 0,25

Oil heater power, kW: 20,4

Mean heater surface power, W/cm2, max: 1,1

Nominal power, kW: 25

Three phase AC power (voltage, frequency): Custom

Max dimensions, mm:

– length: 1500

– width: 1000

– height: 1550

Weight, kg, max: 650

* Note –  Initial oil quality parameters:

• gas content: below 10.5% vol

• water content: below 0.005% (50 g/t)

• temperature: above 0 ºС.
