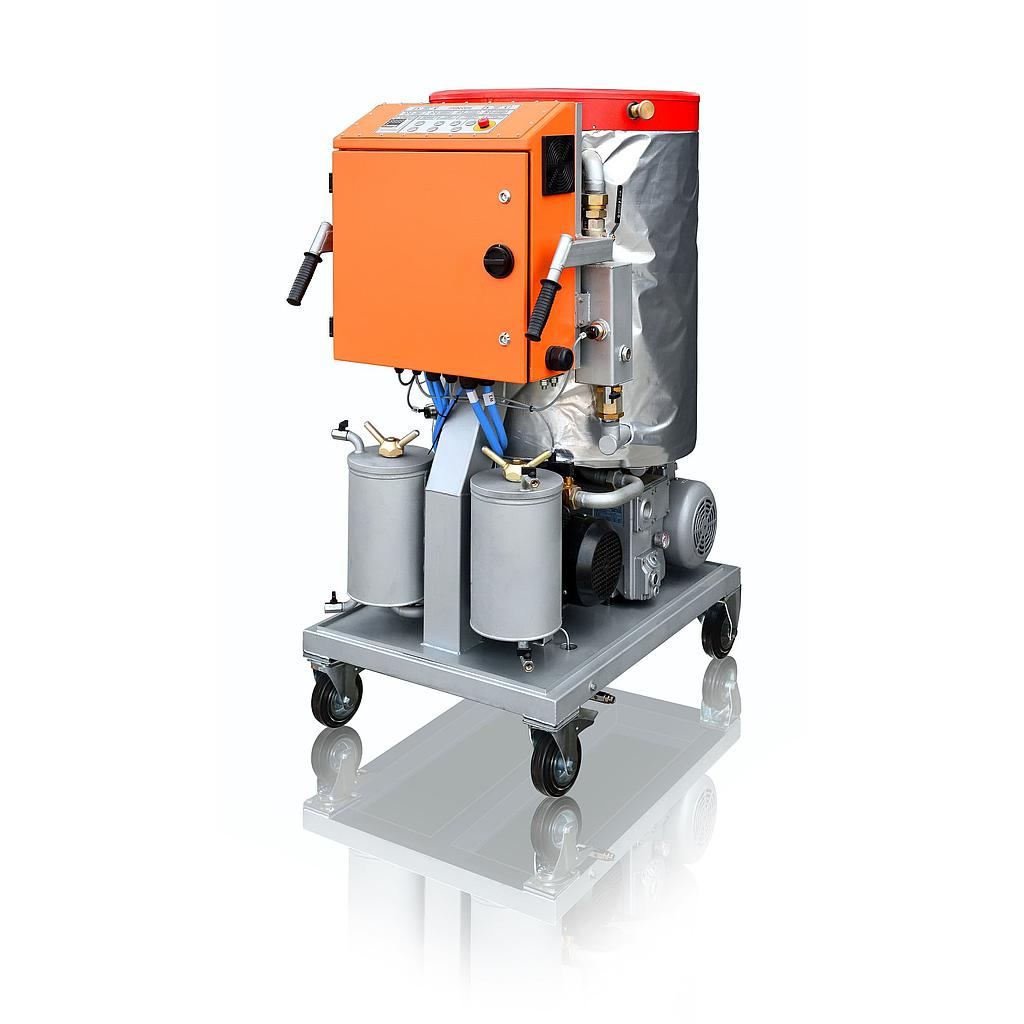

GlobeCore СММ-2.2LT ຫນ່ວຍບໍລິການຟອກນ້ໍາມັນອຸດສາຫະກໍາ (2.2 m3/h; 42 kW)

 Capacity, m3/h (gpm), not less than:

– in the thermal vacuum drying and filtration mode: 2.2

* Processed oil parameters (in several passes):

– total gas content, %, not more than: 1.5

– oil moisture mass content, g/t (ppm), not more than: 10

– industrial purity class of  ISO 4406: -/14/12

Max output oil temperature, ºС (ºF): 55

Output pressure, bar (psi): 3

Oil heater power, kW, not more than: 36

Max power requirement, kW, not more than: 42

Electric current parameters:

– voltage, V: 380

– AC with frequency, Hz: 50

– number of phases: 3

Dimensions, mm, not more than (w/o trailer/with trailer):

– length: 1,050/2,450

– width: 760/1,420

– height: 1,470/1,910

Weight, kg not more (w/o trailer/with trailer): 420/870

 Note:

* At initial parameters of oil:

• volumetric gas content — not more than 10.5%;

• moisture mass content — not more than 0.005% (50 ppm);

• temperature — not lower than 0ºС (32ºF)

• when the oil passes through the unit multiple times.
