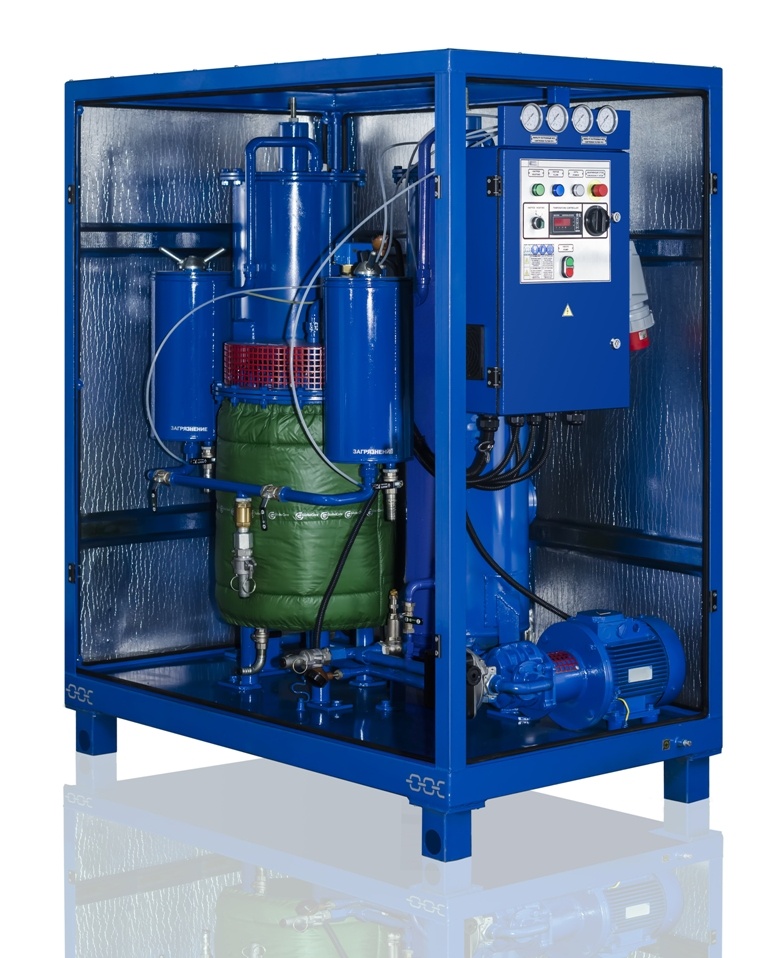

GlobeCore MCU-4.3 ຫນ່ວຍອົບແຫ້ງນ້ໍາມັນ Zeolite (4.3 m3/h; 4.3 m3/h; 33 kW)

Capacity, m3/hour, minimum/gals. per hour:

• drying, regeneration and filtration mode: 4.3/1138

• heating mode: 4.3/1138

Max oil outlet temperature, ⁰С/⁰F:

• drying and filtration mode: --

• heating mode: 60/140

Sorbent max load, kg: -

Sorbent regeneration temperature, ⁰С/⁰F:

Zeolite NaA: -

Silica gel: -

Sorbent regeneration without unloading: No

Processed oil parameters:

• industrial purity class (ISO 4406): 9 (-/14/12)

• solid particle content, max, g/t: 2.5

• acid number, mg KOH/g of oil, max: -

• nominal filtration fineness, micron: 5…25

• mass weight content, g/ton per cycle, max: -

• dielectric loss tangent at 90 ⁰С/194 ⁰F, max: -

• dielectric strength, kW, min: -

Mean heater surface power, W/cm2, max: -

Heater power, kW, max: -

Max power consumption, kW: 33

Three phase AC power voltage, 50/60Hz, V: 380/220

Dimensions, mm/ft, max, length/width/height: 1270/700/1500 (4’16”/2’29”/4’92’)

Weight, kg/lbs, max: 550/1,215.5
