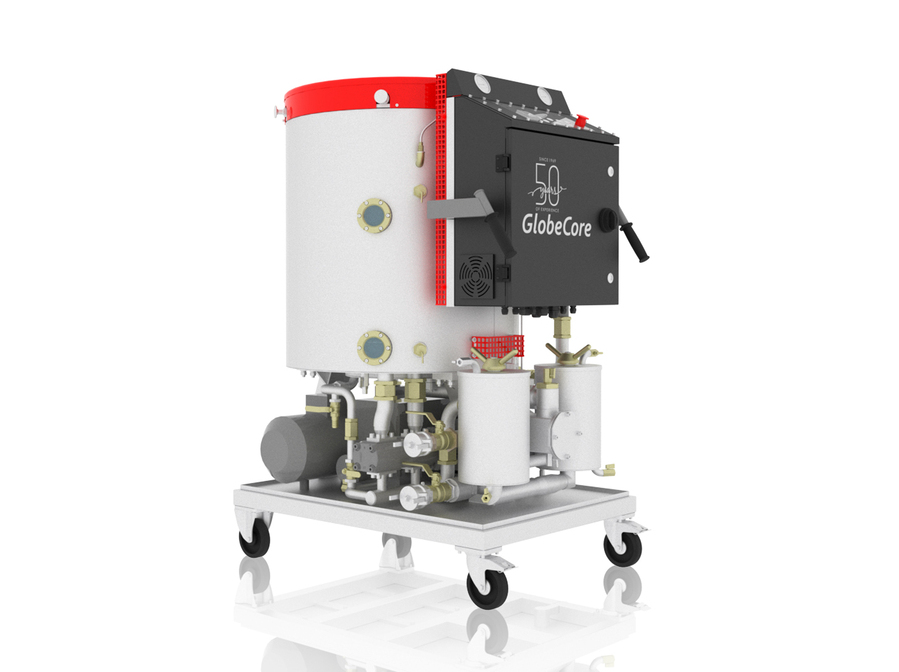

GlobeCore CMM-6LT ຫນ່ວຍບໍລິການຟອກນ້ໍາມັນອຸດສາຫະກໍາ (6.0 m3/h; 50 kW)

Productivity, m3/hour, not less than

• in filtration mode: 6.0

• in thermal vacuum drying mode: 4.0-6.0

*Processed oil parameters (after several passes):

      –  total gas content, % not more than: 1.5

      –  oil mass moisture content, g/t, not more than: 10

      –  industrial cleanliness class according to ISO 4406: -/14/12

Maximum oil temperature at the outlet, ºC: 55-60

Outlet pressure, bar: 3

Oil heater power, kW, not more than: 42

Maximum power consumption, kW, not more than: 50

Electrical current parameters:

- Voltage, V : 380

- Frequency, Hz: 50

- Number of phases : 3

Overall dimensions, mm, not more than

– length: 1100

– width: 780

– height: 1470

Weight, kg, not more than: 475

Note: * initial oil parameters:

• Volumetric gas content – below 10.5%;

• Mass moisture content -below 0.01% (100 g/t);

• Temperature – above 0 ºC.

After multiple passes of the oil through the installation.
