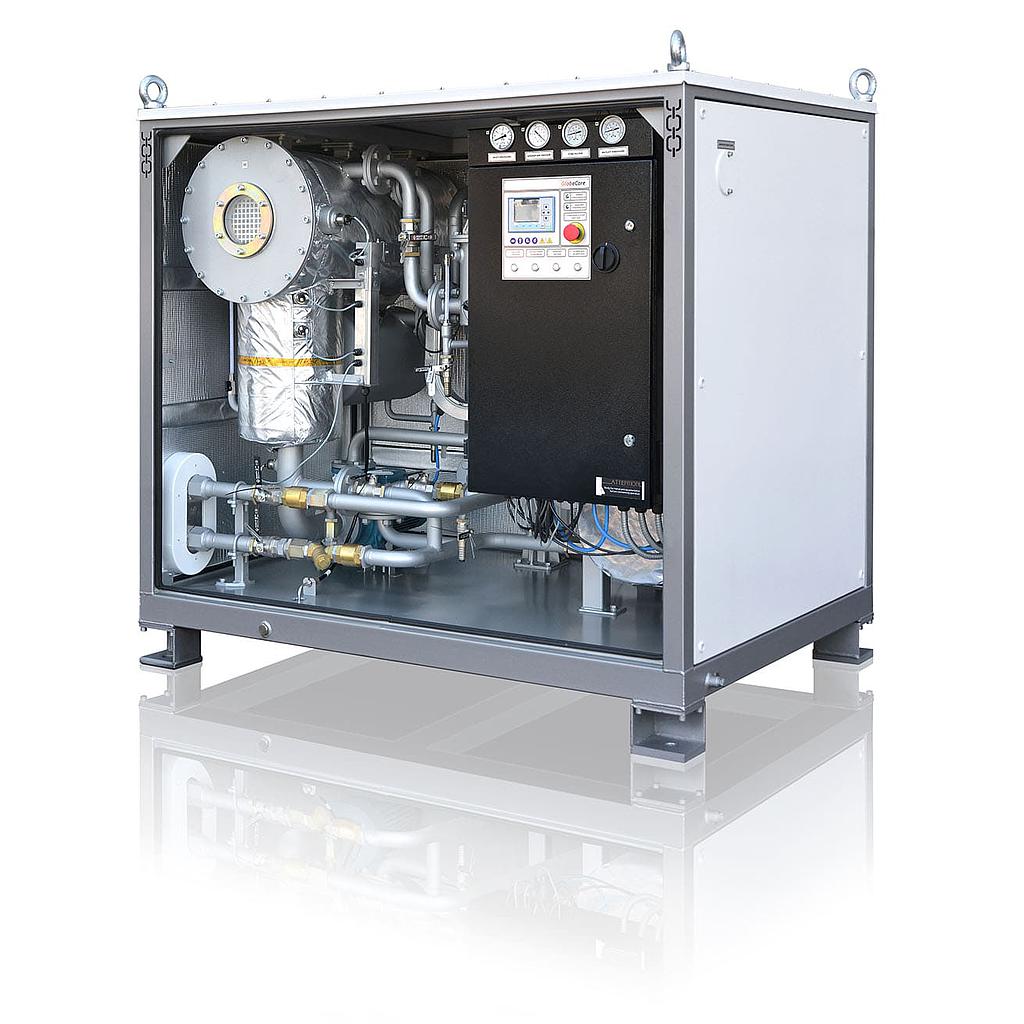

GlobeCore CMM-4,0T ການກັ່ນຕອງນ້ໍາ turbine (4 m3/h; 38 kW)

Capacity, m3/hour: 4

Waste oil parameters:

— Mass moisture content, g/t, not more than: 10

— Filtration degree, mkm, not more than: 5

Maximum Oil outlet  temperature, ºС: 55

Working Pressure, Mpa: 0.4

Working vacuum:

– vacuum pump: -0.75 … -0.85

– in a vacuum tank: -0.65 … -0.75

Oil heater power, kW: 29

Oil heater specific power, W/cm2, not more than: 1.2

Maximum power consumption, KW: 38

Electric current parameters:

— voltage, V: 380

— AC  frequency, HZ: 50

General dimensions, mm:

— overall length: 2060

— overall width: 1130

— overall height: 1980

Weight, kg: 700
