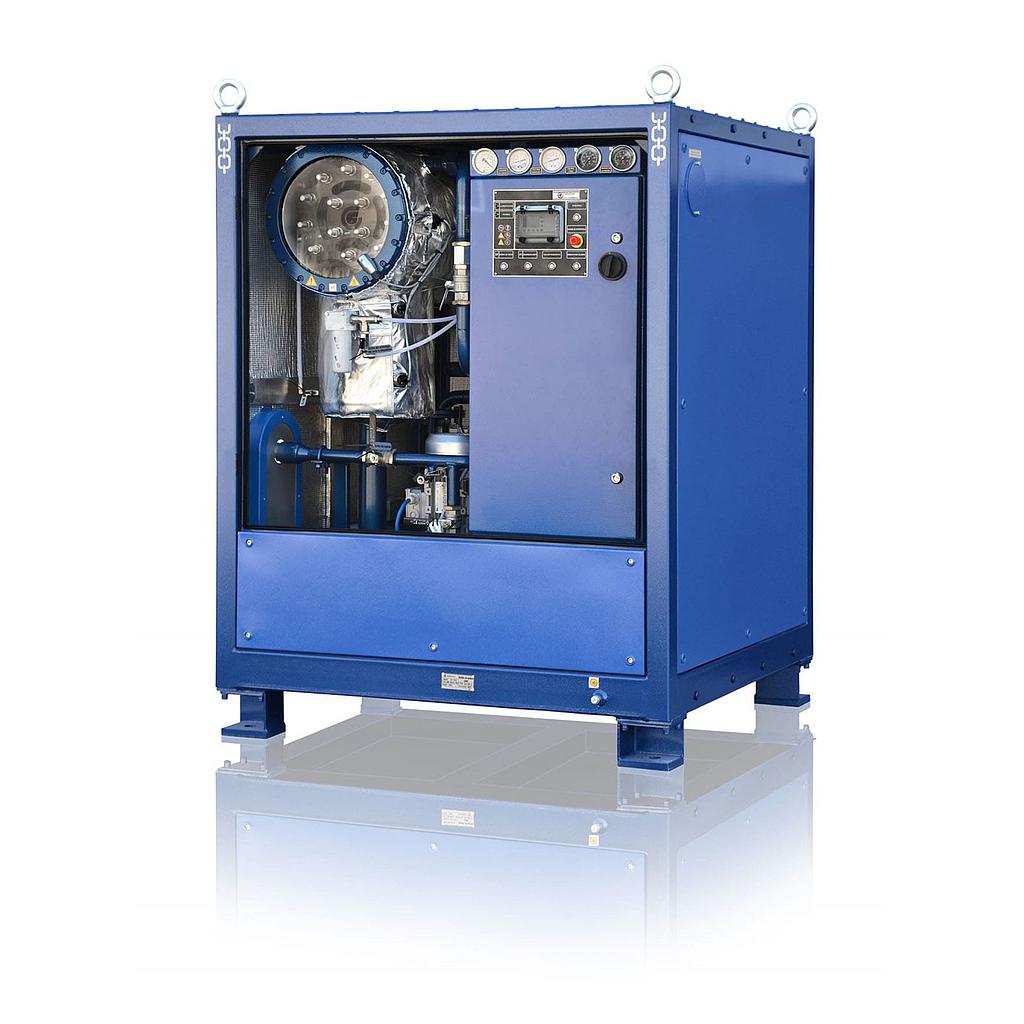

GlobeCore CMM-2.2 ໂຮງງານນ້ໍາມັນມືຖື (2.2 m3/h, 1.0 m3/h; 40 kW)

Capacity, m3/hour  / gallon per hour:

• thermal vacuum drying mode: 2.2/582.34

• degassing mode: 1.0/264.7

Processed oil parameters*:

• mass moisture content, g/ton, max: 10

• filtration fineness, micron: 5

• total gas content, % max: 1.5

Max oil output temperature in heating mode, ºС/ ºF: 60/140

Min outlet pressure, Mpa: 0.2

Oil heater power, kW max: 36

Max power consumption, kW: 40

Electric power:

• voltage, V: 380

• AC frequency, Hz: 50/60

Dimensions, mm/ft:

– length: 1550/5’1’’

– width: 1000/3’3’’

– height: 1850/6’1’’

Note: * Parameters indicated in the table imply the following initial conditions:

• volumetric gas content – below 10.5%

• mass moisture content – below 0.005% (50 g/ton)

• temperature – above 0 ºС/32 ºF

• with initial heating of oil in the unit to +60± 5 ºС / 140°± 9 ºF.
