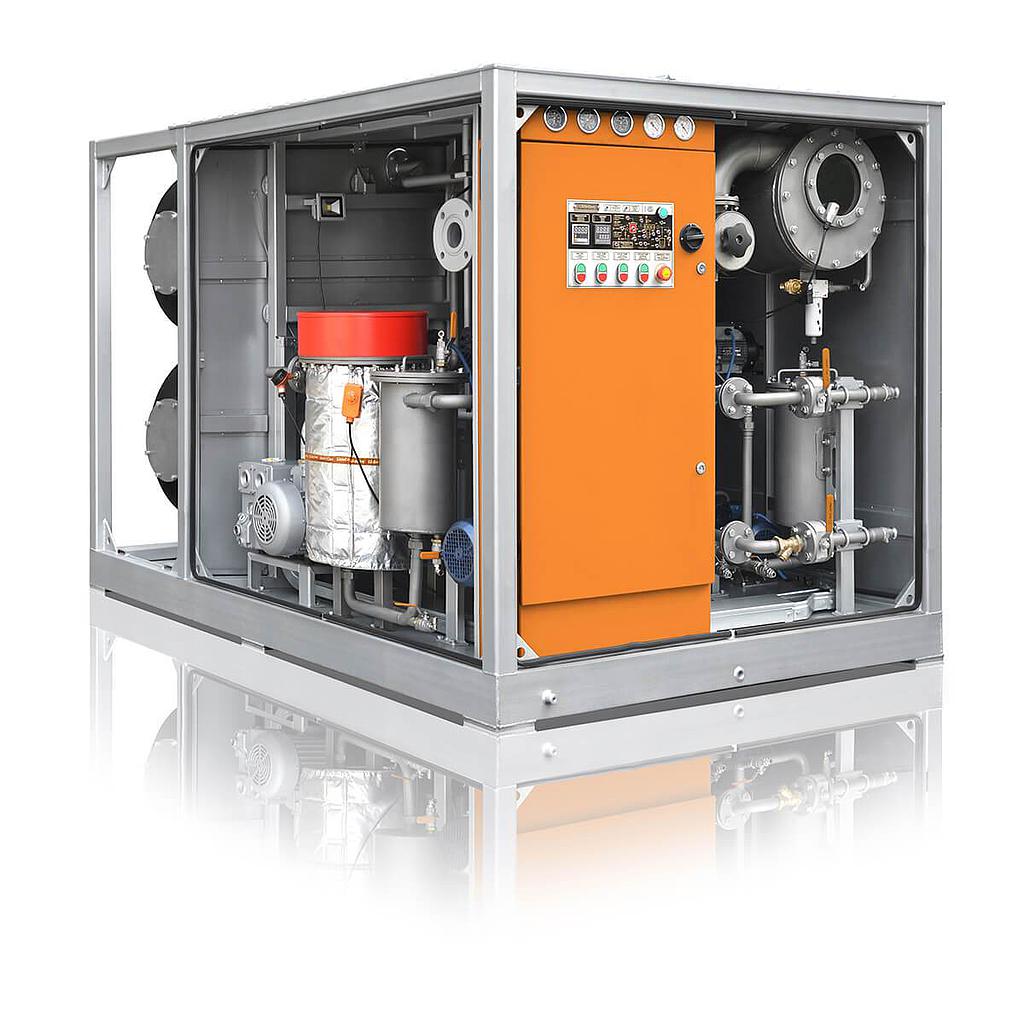

GlobeCore CMM-1CO ຫນ່ວຍບໍລິການ degassing ນ້ໍາມັນສາຍ (1 m3/h; 27 kW)

Capacity, m3/hour,  not less than: 1

* Processed oil parameters:

– gas content, % vol, not more than: 0.05

– moisture content, ppm, not more than: 5

– ISO 4406 purity class: -/14/12

– particulate matter, g/ton, not more than: 8

– filtration, μm: 2

– dielectric strength, kV, not less than: 70

Oil temperature in heating mode, ºС, not more than: 70

Filtration coefficient: ≥50

Outlet pressure, (nominal/max), bar: 2/12

Oil heater power, kW: 18

Oil heater watt density, W/cm2, max: 1.15

Max power requirement, kW: 27

Oil storage tank capacity,  m3: 0.7

Power supply:

– voltage, V: Custom

– AC frequency, Hz: Custom

 Dimensions,  mm:

– length: 2450

– width: 1550

– height: 1700

Weight kg: 1800

Note –  * Initial oil quality:

• gas content below 10.5%vol;

• moisture content below 0.01% (100 ppm);

• temperature above 0ºС.
