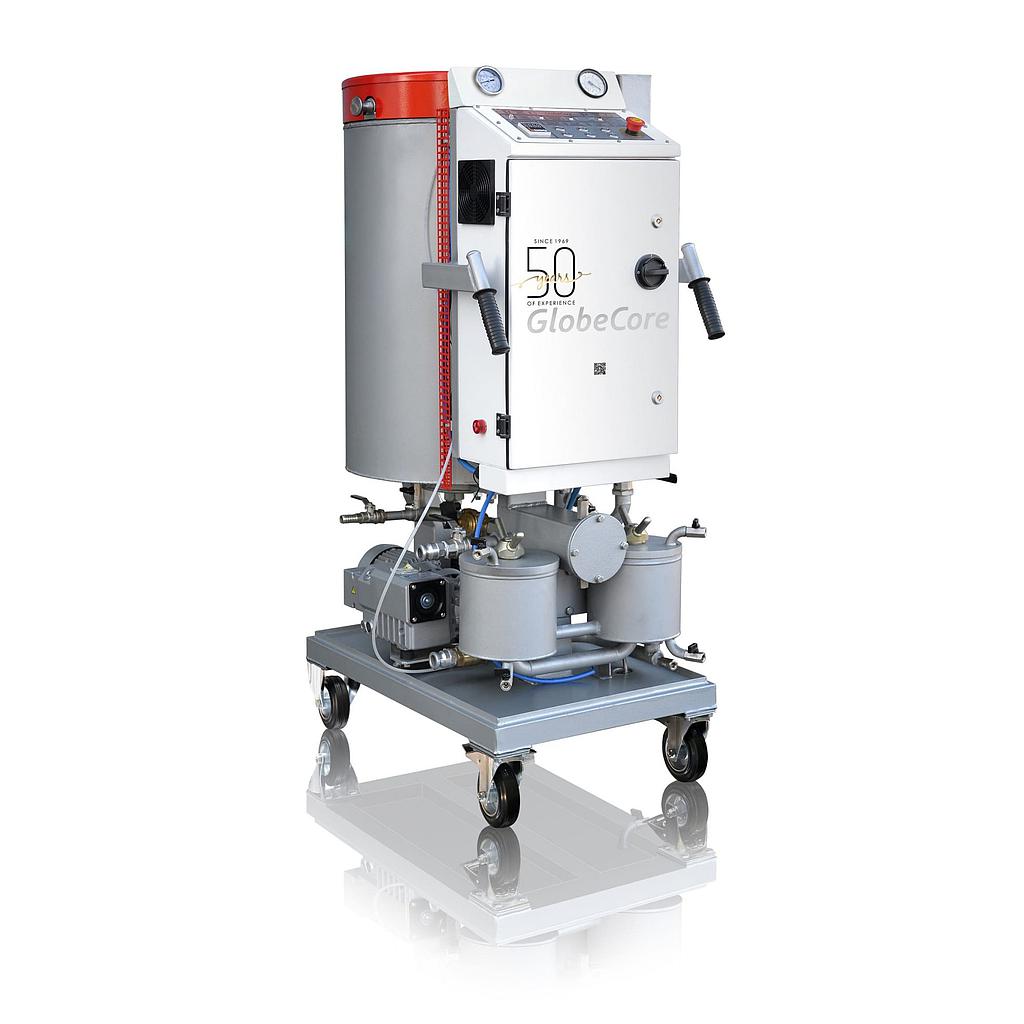

GlobeCore CMM-1.0LT Transformer Oil Purification Unit (1.0 m3/h; 15kW)

 Capacity, m3/h (gpm), not less than:

– in the thermal vacuum drying and filtration mode: 1.0 (4.4)

* Processed oil parameters (in several passes):

– total gas content, %, not more than: 1.5

– oil moisture mass content, g/t (ppm), not more than: 10

– industrial purity class of  ISO 4406: -/14/12

Max output oil temperature, ºС (ºF): 55 (131)

Output pressure, bar (psi): 3 (43,5)

Oil heater power, kW, not more than: 12

Max power requirement, kW, not more than: 15

Electric current parameters:

– voltage, V: 380

– AC with frequency, Hz: 50

– number of phases: 3

Dimensions, mm (in), not more than (w/o trailer/with trailer):

– length: 910 (36)/2450 (96)

– width: 620 (24)/1420 (56)

– height: 1500 (59)/1910 (75)

Weight, kg not more (w/o trailer/with trailer): 280 (617)/730 (1600)

 Note:

* At initial parameters of oil:

• volumetric gas content — not more than 10.5%;

• moisture mass content — not more than 0.005% (50 ppm);

• temperature — not lower than 0ºС (32ºF)

• when the oil passes through the unit multiple times.
