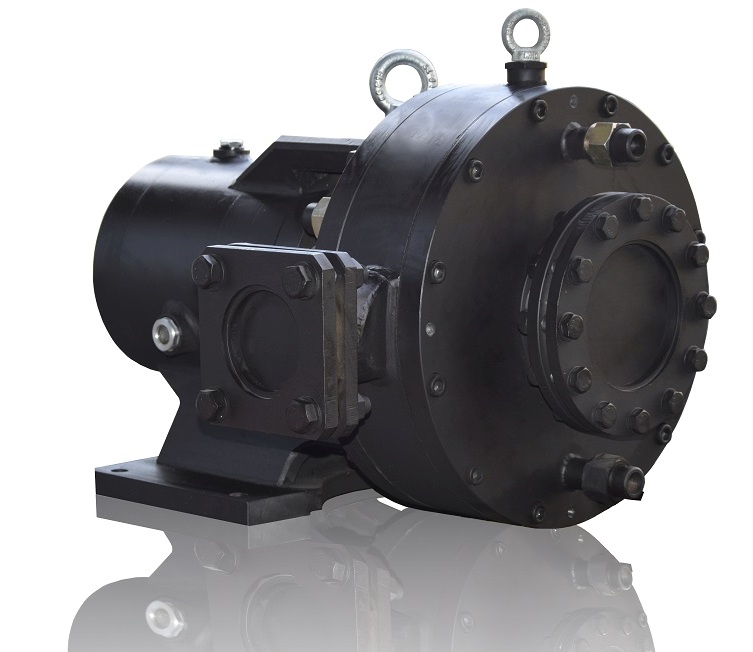

GlobeCore CLM-8/16 ໂຮງສີໂຄລອຍ (16 m3/h; 75 kW)

Mill capacity, m3/h (gpm): 8… 16 (35… 70)

Kinematic viscosity of product, mm2/s (St),  not more than: 150 (1.5)

Initial size of polymer particles, mm (in), not more than: 5 (0.2)

Maximum operating pressure, MPa (psi): 0.6 (87)

Rated rotation frequency, rpm: 2,950

Drive motor power, kW: 75

Parameters of electricity mains, V/Hz: custom

Nominal bore diameter of mill fittings, mm (in)

 – inlet: 120 (4.7)

 – outlet: 80 (3.1)

Operating temperature, °С (°F), not more than: 180 (356)

Mill shaft seal: packing

Knife gap adjustment type: manual

Knife gap adjustment range, mm (in): 0,2…2 (8·10-3… 8·10-3)

Knife tip speed at 3,000 rpm, m/s (mph), not more than: 47 (105)

Dimensions (not more than), mm (in):

 – length: 1,690 (67)

 – width: 650 (26)

 – height: 770 (30)

Net weight (not more than), kg (lb): 780 (1,720)
