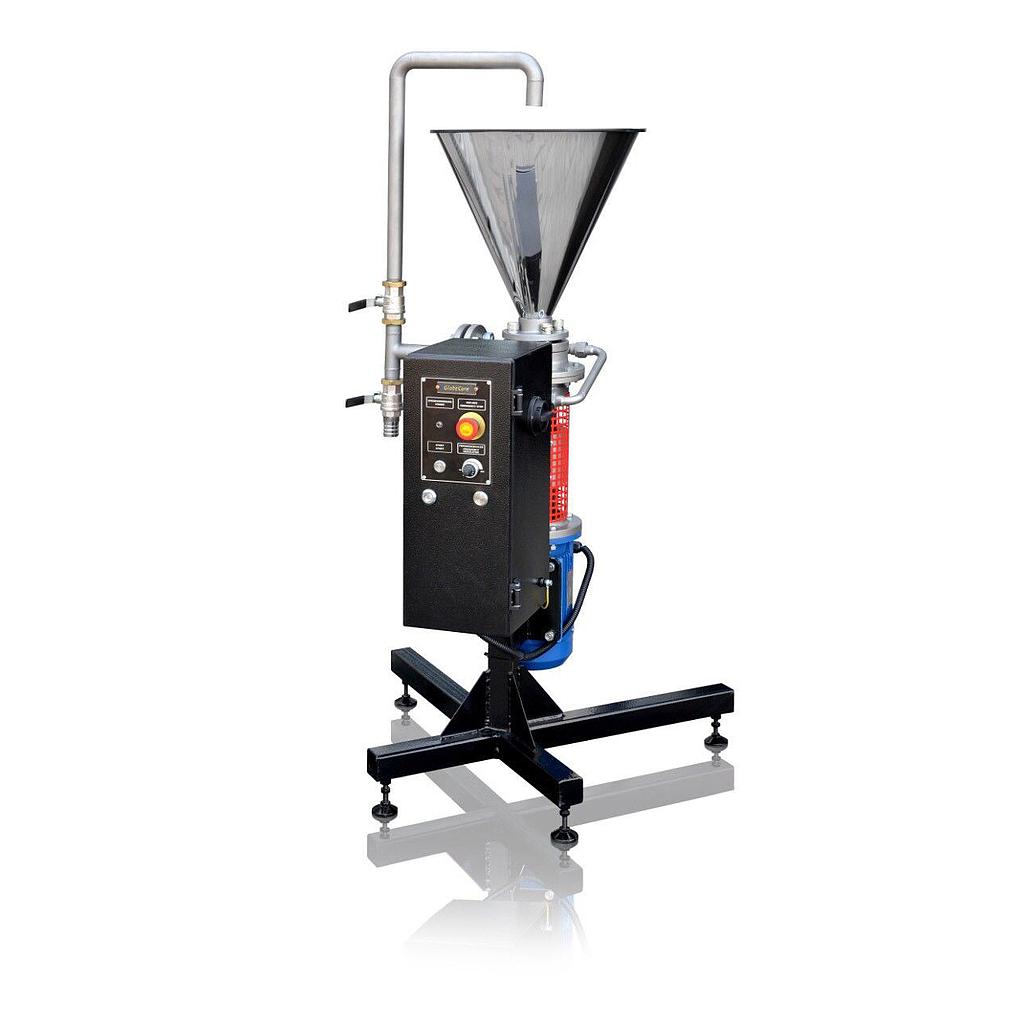

GlobeCore CLM-200.2 ໂຮງສີໂຄລອຍ (0.2 m3/h; 2.2 kW)

Unit capacity, m3/h (gpm): 0.2 (0.88)

Kinematic viscosity of product, mm2/s (St), not more than: 150 (1.5)

Operating temperature, °С (°F), not more than: 150 (302)

Maximum pressure, bar (psi), not more than: 6 (87)

Product operating volume, L (gal): 5…10 (1.3… 2.6)

Shaft seal type: packing

Rotor/stator tooling type: chamber

Replaceable knife kit: optional

Knife axial gap (preset), mm (in): 0.5…1 (2·10-2… 4·10-2)

Knife radial gap, mm (in): 0,2 (8·10-3)

Knife tip speed, m/s (mph), not less than: 15…30 (34… 67)

Shaft rotation speed, rpm: 2,840…5,680

Frequency adjustment, Hz: 50…100

Operating time (by timer setting), s: 0…60

Drive power, kW: 2.2

Power voltage, V: custom

Dimensions, mm (in), not more than:

·      length: 800 (31)

·      width: 750 (30)

·      height: 1450 (57)

Weight, not more than, kg (lb): 90 (198)
