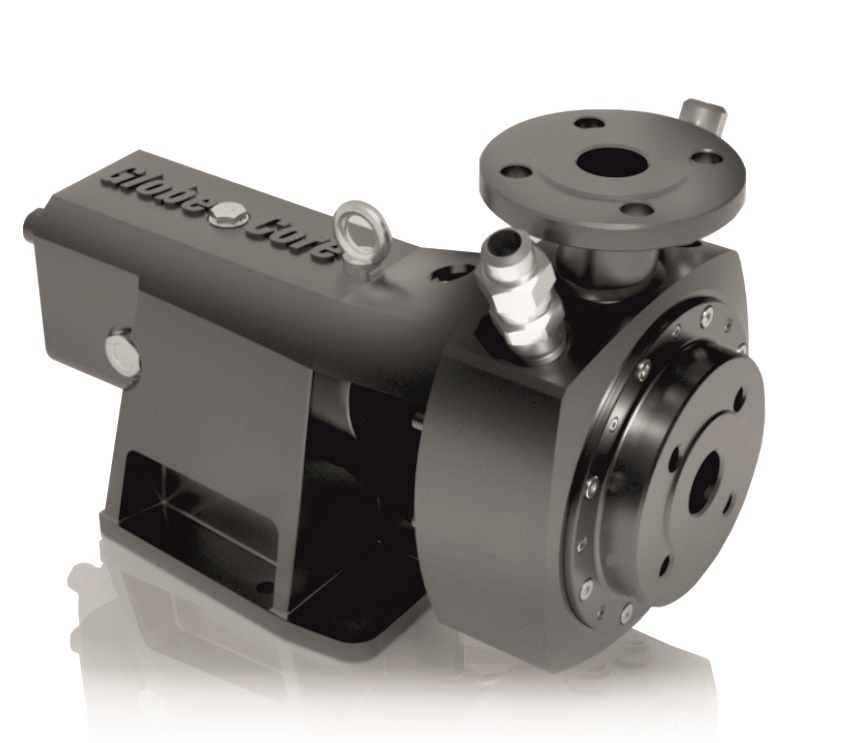

GlobeCore CLM-2/4 ໂຮງສີໂຄລອຍ (4 m3/h; 11 kW)

Unit capacity, m3/h (gpm): 2…4 (8.8… 17.6)

Operating temperature, °C (°F), not more than: 150 (302)

Maximum pressure, bar (psi), not more than: 10 (145)

Product operating volume, L: flow

Shaft seal type: packing

Rotor/stator tooling type: nozzle

Replaceable knife kit: optional

Knife axial gap (preset),  mm : 0.5…1.5 (2·10-2…6·10-2 )

Knife radial gap mm (in): 0.25 (10-3)

Knife tip speed, m/s (mph), not more than: 45 (100)

Mill shaft and bearing rotation speed, rpm: 6,350

Electric motor shaft rotation speed, rpm: 2,900

Drive power, kW: 11

Power voltage, V: custom

Dimensions, mm (in), not more than:

·      length: 900 (35)

·      width: 580 (23)

·      height: 450 (18)

Weight, kg (lbs), (max): 190 (420)
