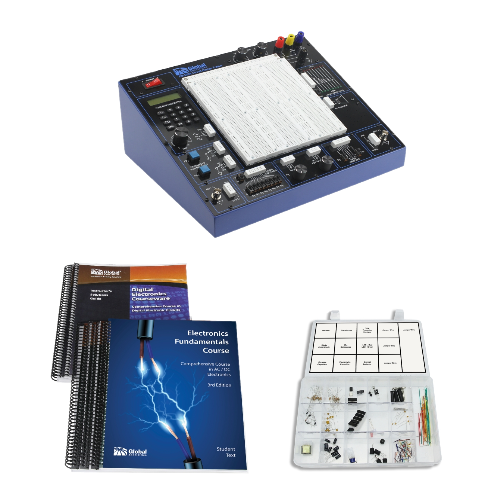

AC Line Input: 115 VAC @ 60 Hz or 230 VAC @ 50 Hz (switchable)
Power Supplies:
+ Fixed DC: +5 VDC 1.0 A max. (current limited); Ripple <5 mV
+ Variable + DC: +1.3 VDC ±0.05 V @ 150 mA to +15 VDC @ 500 mA, Ripple < 5 mV
+ Variable - DC: -1.3 VDC ±0.05 V @ 150 mA to -15 VDC @ 500 mA, Ripple < 5 mV
Binding Posts: 4 Ground, +5 VDC, Variable ±VDC Power Supply Outputs
Pulsers: 2 Pushbutton-operated, open-collector output pulsers. Each with 1 normally-open, 1 normally closed output. Each output sinks up to 250 mA
Digital Function Generator:
+ Frequency Range: 0.1 Hz to 100 kHz, two ranges
+ Output Voltage: 0 to +10Vp-p into 600 Ω Load (20 Vp-p in open circuit), short circuit protected
+ Output Impedance: 600 Ω except TTL
+ Output waveforms: Sine, Square, Triangle & TTL
+ Sine Wave Distortion: <3% @ 1 kHz Typical
+ TTL Pulse: Rise & fall time: <25 ns, drive 100 TTL
+ Square Wave: Rise and fall times <0.5 μs
Logic Switches:
+ 8 Logic Switches select Logic High and Logic Low
+ Logic Low Level: Ground
+ Logic High Level: Switchable between +5 V and the variable positive power supply
Switches: 2 Single Pole Double Throw (SPDT) - uncommitted
Logic Indicators:
+ LEDs: 16 LEDs; 8 red to indicate logic high and 8 green to indicate logic low
+ Logic High Threshold: 2.2 V (nominal) in TTL/+5 V mode, 70% (nominal) of selected operating voltage in CMOS mode
+ Logic Low Threshold: 0.8 V (nominal) in TTL/+5 V mode, 30% (nominal) of selected operating voltage in CMOS mode
Connectors: 2 BNC - uncommitted
Potentiometers: 2: 1 kΩ and 10 kΩ - uncommitted
Speaker: 8 Ω, 0.25 W - uncommitted
Breadboards: Removable plexiglas socket plate (PB-3) with 2,520 tie-points with 200 additional bus strip tie-points internally connected to power supply outputs and ground
Weight: 7 lbs (3.2 kg)
Dimensions: 326 mm x 260 mm x 155 mm
