Input power Source: AC Line: 110/120VAC @ 60Hz, or 210-220VAC @ 50Hz
Power Supplies:
+ Fixed DC: +5V +/-0.2VDC, 1.0A max, current limited
Load Regulation better than 0.8% +/- 0.02%/°C
Ripple, <4mVp-p @1A
+ Fixed DC: +12VDC, 0.5A max@ +12VDC +/-5%
Load Regulation better than 1% +/- 0.04%/°C,
Ripple less that 10mVp-p @ 0.5A
+ Fixed DC: -12VDC, 0.5A max@ +12VDC +/-5%
Load Regulation better than 1% +/- 0.04%/°C
Ripple less that 10mVp-p @ 0.5A
Binding Posts
+ (1) Black: Chassis Ground
+ (3) Red: Power Supply Outputs +5VDC, +12VDC & -12VDC

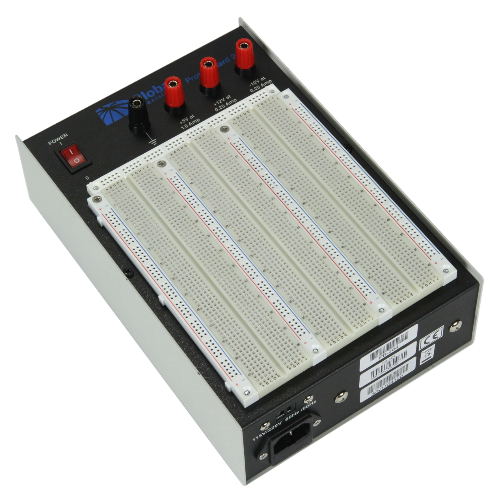

Breadboards: 2250 Tie points with (8) 100 pin and (2) 80 pin power rails and accommodate up to 24 (14 pin) IC's
Weight: 5lbs 5 oz (2.5kg)
Dimensions: 9.8 x 6.6 x3.3" (249 x 167 x 86.7mm)
