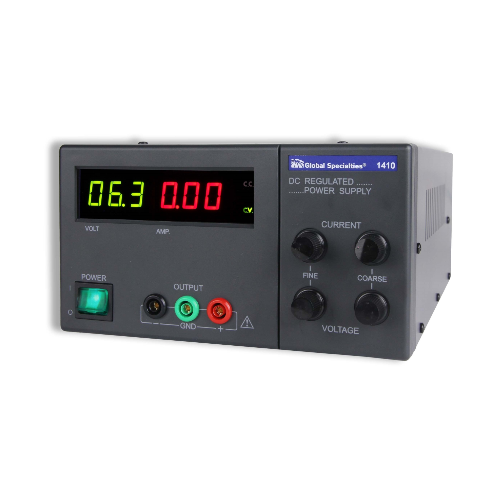

GLOBAL 1410 90W DC Power Supply
Output Voltage: 0–30 V
Output Current: 3 A
CONSTANT VOLTAGE CHARACTERISTICS
+ Load regulation (0-100%): 0.02% +3 mV
+ Line regulation ( ± 6% ): 0.02% +3 mV
+ Ripple and noise r.m.s: 1 mV
CONSTANT CURRENT CHARACTERISTICS
+ Load regulation (0-100%): 0.02% +3 mA
+ Line regulation ( ± 6% ): 0.02% +3 mA
OUTPUT
+ Output terminals ( color ): ( + ) Red, ( – ) Black, (GND) Green
+ Ground proof voltage: ±180 V
Voltmeter: 3 digits
Ammeter; 3 digits
Serial connection ( independent control mode ): Can be connected in series (within limits of ground proof voltage)
Parallel operation ( master – slave mode ): Can be operated in “one-control” parallel configuration (only same model)
INPUT VOLTAGE
+ Voltage, Frequency: 120/240 VAC, 50/60 Hz; Switchable
+ Operating ambient temperature: 5–40°C; 10–80% R.H.
Dimensions ( W x H x D ): 205 x 115 x 270 ( mm )
Weight: Approximate 7.4 kg
