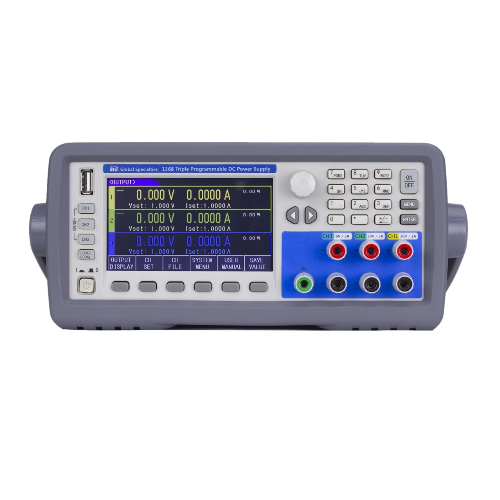

GLOBAL 1368 Programmable Linear DC Power Supply (30V 3A/1~2CH; 6V 5A/3CH; 210W)
Rated Output (0˚C to 40˚C):
+ Voltage: CH1, CH2: 0 to 30 V / CH3: 0 to 6 V
+ Current: CH1, CH2: 0 to 3 A / CH3: 0 to 5 A
Power: 210 W
Load Regulation ± (% Output + Bias): ≤0.01 % + 3 mV / ≤0.01 % + 3 mA
Line Regulation ± (% Output + Bias): ≤0.01 % + 3 mV / ≤0.01 % + 3 mA
Programming Resolution: 1 mV / 0.1 mA
Read-back Value Resolution: 1 mV / 0.1 mA
Drift (0˚C to 40˚C) ± (% Output + Bias) per year:
+ Program: CH1, CH2:≤0.03 % + 10 mV / (≤0.1% + 5 mA); CH3:(≤0.1% + 8 mA)
+ Readback: CH1, CH2:≤0.03 % + 10 mV / (≤0.1% + 5 mA); CH3:(≤0.1% + 8 mA)
Ripple and Noise (20 Hz to 20 MHz):
+ Normal Voltage Mode: CH1, CH2: ≤3mVp-p / CH3: ≤4mVp-p
+ Normal Current Mode: CH1, CH2: ≤3mArms / CH3: ≤5mArms
Temperature Factor: ≤0.02 % + 5 mV / ≤0.1 % + 5 mA
Series / Parallel Accuracy: ≤0.02 % + 5 mV / ≤0.1 % + 20 mA
Timer: 0.1 to 99999.9 s
Memory: 4 groups of 40 data sets
