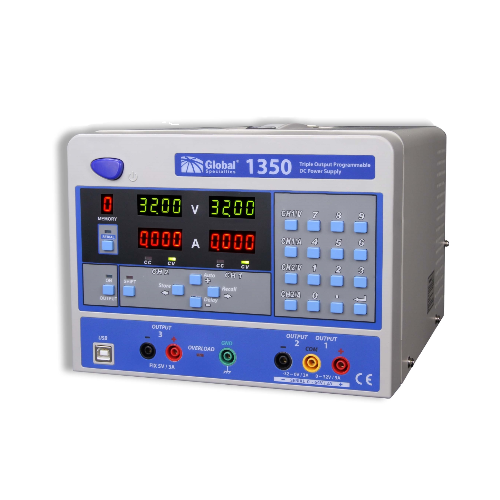

GLOBAL 1350 Triple Output Programmable DC Power Supply
Output: 0V ~ 32V, 0V ~ 32V, 5V Fixed / 0 ~ -3A, 0 ~ 3A, 3A Fixed
+ Over Voltage Protection: 0V ~ -33V, 0V ~ 33V, Over Load
Load Effect: ±20 mV / ±10 mA
Source Effect: ±20 mV / ±10 mA
Resolution: 10 mV / 1 mA
Program Accuracy (25 ): 0.5% ± 20 mV / 0.5% ± 10 mA
Ripple & Noise:
+ Voltage: Ripple 1mVrms / 3mVp-p; Noise 2mVrms / 6mVp-p
+ Current: 3mArms
Temperature Coefficient: 100ppm + 20 mV / 150ppm + 10 mA
Read Back Resolution Accuracy (25±5 ): 0.5% ± 10mV / 0.5% ± 1mA
Response Time:
+ Voltage Up 10~90%: 100mS
+ Voltage Down 90~10%: 100mS
Read Back Temperature Voltage: 100ppm ± 20mV
Coefficient: 150ppm ± 10mA
Drift: 100ppm ± 20mV / 150ppm ± 10mA
Track: Error 0.1% + 50mV
Memory: 1~9 sets
Timer For Working Loop:
+ Step Time: 1 sec ~ 999999 sec
+ Resolution: 1 sec 5V
Fixed Ripple: 2mVrms
Output Voltage Accuracy: 5V ± 0.25V
Output Max Current: 3A ± 0.02A
Power Source: AC 120V, 240V ±5% 50/60Hz
