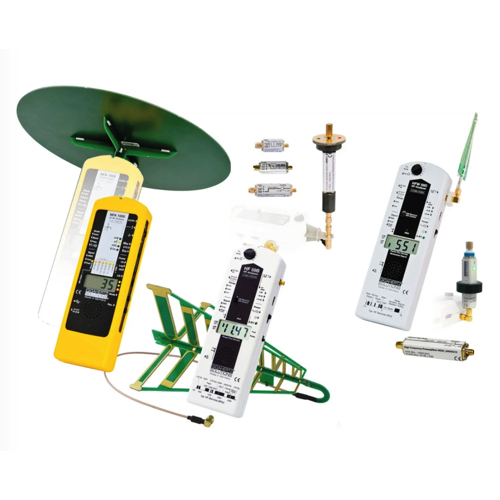

GIGAHERTZ SOLUTIONS MK70-3D plus 2.2 ຊຸດວັດແທກຄວັນໄຟຟ້າ 3 ມິຕິ (700 MHz - 2.7 GHz; 5 Hz - 1000 KHz)
Item weight: 5.10 kg
Frequency range:
HF59B: 700 MHz - 2.7 GHz (3.3 GHz with increased tolerance). Supplied with LogPer antenna from 700 MHz. Internally "open" - down to 27 MHz, prepared for connection of UBB27).
NFA1000:
5 Hz - 1000 KHz (compensated). Also includes modern switching power supplies
Better than required by the technical annex of the TCO directive for VDU workstations
Measurement range:
HF59B: Power flux density: 0.01 - 19,990 µW/m²
HFW59D: Power flux density: 1 - 19,990 µW/m²
NFA1000:
Magnetic flux density: 1 - 19,990 nT
Electric field strength: 0.1 - 1999 V/m
Precision:
HF59B:
Basic accuracy (CW) including linearity error: +/- 3 dB
Zero point deviation and special digitizing error ("rollover"): +/- 5 digits
HFW59D:
Basic accuracy including linearity error: +/- 3 dB
Zero point deviation and special digitizing error ("rollover"): +/- 5 digits
NFA1000:
50 / 60 Hz: +/- 5 %
16 Hz - 30 kHz: +/- 1 dB
5Hz - 1000 kHz: +/- 2 dB
Isotropic reduction: +/- 1.5 dB
Offset +/- 5 Digits
Included Components
NFA1000
HF59B
HFW59D
1 X HV10_27G3
1 X PM5s
1 X PM1
1 X UBB2410
1 X HV20_2400G10
1 X UBB27_G3
1 X DG20_G10
1 X HOL1
1 X TCO3
1 X K7
1 X HP33_G10
1 X HP700
1 X ADA-Y
