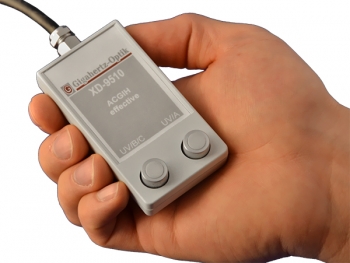

Gigahertz-Optik XD-9510-4 ການປະເມີນຄວາມສ່ຽງອັນຕະລາຍຈາກ UV (10 mW/m2 ~ 10 kW/m2, 3 µW/m2 ~ 250 W/m2)
Measurement range:
UV-BC: 10 mW/m² to 10 kW/m²
UV-A: 3 µW/m² to 250 W/m²
Typical applications: Detector for the check of hazard caused by UV radiation emitted by machinery.
Calibration: Calibration of the actinic responsivity of each detector channel. Calibration of the relative spectral responsivity of each of the detector head cells.
Spectral responsivity:
Ch 1: Suv(λ) UV-A (320 - 400) nm
Ch 2: Suv(λ) UV-BC (250 - 320) nm
Typical responsivity:
UV-BC: 1.5 nA/(W/m²)
UV-A: 4 µA/(W/m²)
Max. signal current:
UV-BC: 50 µA
UV-A: 1 mA
Input optics: 8 mm Ø Diffuser
Measurement ranges:
XD-9510-CH1
min (0.1 pA NEI): 2.50E-08 W/m²
max (200 µA): 5.00E+01 W/m²
max (1 mA): 2.50E+02 W/m²
XD-9510-CH2
min (0.1 pA NEI): 6.67E-05 W/m²
max (50 µA): 3.33E+04 W/m²
Temperature range: 5 - 40°C
Cable Length: 2m
