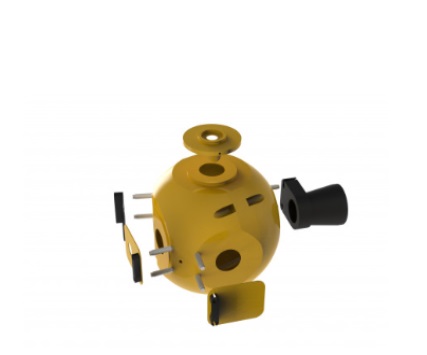

Gigahertz-Optik UPG-150-ART Gold Coated Integrating Sphere (150 mm, ± 0.1 °)
-Measurement range:
Diameter: 150 mm (6 inch)
Coating: ODG95 pure gold
Application ports: five, 30 mm diameter with knife edge, post for Slide&Fix accessory
Detectorport: exhange able Adapters with baffle-Typical applications: Spectrophotometer. Other transmission and reflection measurement set-ups.
-Sphere diameter: 150 mm
-Coating: ODG95 pure gold
-Measurement Port Diameter: 30 mm
-Knife edge thickness: 0.5 mm (knife edge design)
-Number of measurement ports: Five
-Angle tolerance of port setup: ±0.1°
-Accessories: Every two removable posts of the Slide & Fix System
-Detector port: 30 mm with circumferential frame (Ø = 58 mm) with lateral V-notch
-Mounting: Flat base with four M5 threaded holes within a 50 mm pitch circle
-Weight: approx. 1.1kg
