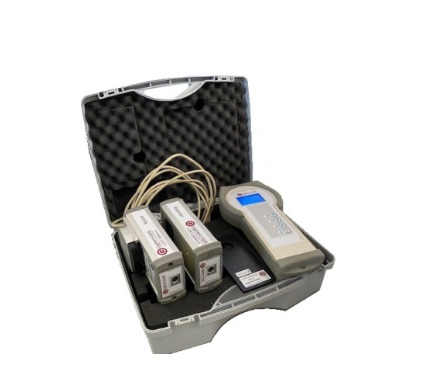

Gigahertz-Optik LCRT-2005H-S ເຄື່ອງກວດຈັບສະເປັກແບບພົກພາໄດ້ສຳລັບການສົ່ງແສງ (380 nm ~ 780 nm, 5 nm)
-Measurement range:
Spectral range: 380 nm to 780 nm
Spectral resolution: 5 nm
Transmission range: 5 % to 100 %
Measurement beam diameter: 6.6 mm
Illumination: A, C, D65
Detection: Spectral Photometric, Spectral Radiometric
-Typical applications:
Measurement of the light Transmission and Haze of automotive and all other vehicles front and side windows. Measurement of the spectral transmission of thin films and thin plates.
-Calibration:
Relative measurement method with 100% reference adjustment.
Optional calibration with 70% or 80% calibration standards.
-Measurement geometry:
D/0 geometry; measurement of the luminance ratio with a diffuse light source as per CIE 130 & DIN 5036.
Haze measurement according to ASTM D1003−13
-Sensor: Diode array detector with radiance lens. Depolarizer for measurement of polarized samples. Simulation of photometric responsivity. Digital camera for aid in freehand setup of source and receiver.
-Spectral range: 380 nm to 780 nm
-Measurement range: 5 % to 100 % transmission for a color-neutral transmission spectrum
-Typical Measurement uncertainty: ± 1 % absolute
-Data Resolution: 0.1 %
-Temperature range: 10 °C to 40 °C
-Humidity: Above the saturation temperature
