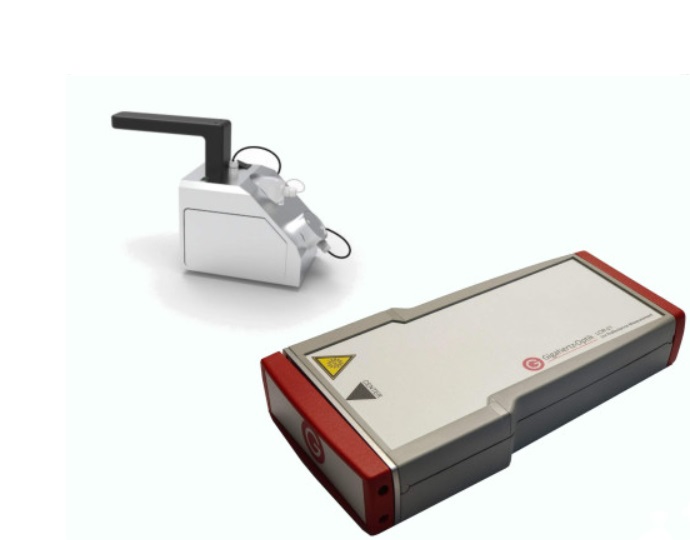

Gigahertz-Optik LCR-21 ອຸປະກອນວັດແທກການສະທ້ອນແສງ UV (254 nm)
-Measurement range:
Spectral range: 254 nm
Detection: Reflection
-Typical applications: Measurement of the UV reflection of surfaces for e.g. UV disinfection installations.
-Calibration: Relative measurement methode with 100 % reference adjustment.
-Measurement geometry: 45°/45° and 45°/0° geometry
-Light Source: UV LED collimated with monitor detector
-Sensor: UV-3725
-Spectral range: 254 nm LED Peak +/-LED tolerance
-Calibration:
Relative measurements after performing 100% match against air.
Traceable measurements after matching with calibrated standard filters.
-Housing: Plastic housing in which everything is integrated, with external X1-5 V03.
-Control electronics: X1 Optometer, special firmware version for LCR-21 (X1-5 V03), but can also be used with any -5 detector.
-Spot Diameter: 10 mm
-Temperature range: 10°C to 40°C
-Humidity: Above the saturation temperature
-Electrical connection: USB power supply light source / charging
