Gigahertz-Optik ISD-100HF-V05 ການລວມຕົວຜ່ານ (350 nm ~ 1050 nm)
-Main features:
Integrating sphere with 100W auxiliary lamp, height adjustable
sample holder.

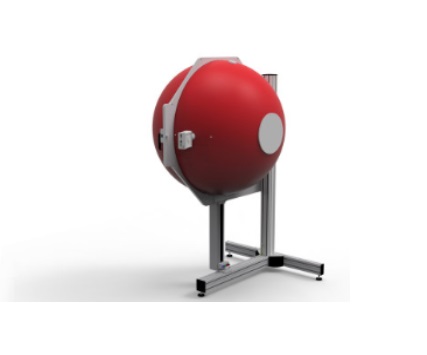

Integrating sphere with a 100 cm diameter. One half of the sphere can be opened. Height-adjustable sample holder.
ISD-100HF-V05 for operation of the test lamps inside the sphere.
-Measurement range
Luminous flux: Integral 1 mlm to 4 klm,
Spectral for typical white LEDs: 0.1 lm to 700000 klm
Spectral radiant flux: 1E-5 W/nm to 3.3E4 W/nm
Spectral range: 350 nm to 1050 nm
-Typical applications: Inspection of incoming products (LED lamps), in-line quality assurance, design
-Calibration: Factory calibration. Traceable to international calibration standards
-Typical measurement time
10 lm: 450 ms
100 lm: 45 ms
1000 lm: 4,5 ms
-Calibration:
Spectral radiant power
Calibration uncertainty luminous flux ±4%
