Gigahertz-Optik ISD-100HF-V02 ການລວມສູນ (360 nm ~ 830 nm)
ISD-100HF-V02-BTS256-LED: Spectroradiometer for measurement of the luminous flux,
spectrum, color, and color rendering index. Operation with the LED lamps at the center of the
sphere or outside the sphere
-Measurement range: 4 lm to 400,000 lm, 360 nm to 830 nm
-Typical applications: Inspection of incoming products (LED lamps), quality assurance in production processes, design
-Calibration: Factory calibration. Traceable to international standards
-Calibration uncertainty: Luminous flux calibration ±5%
-Input optic - ISD-100HF-V01

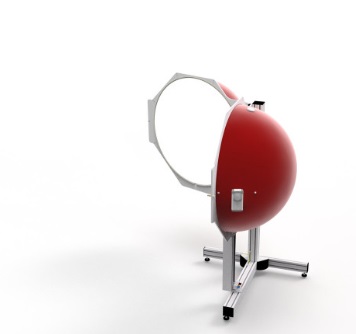

Integrating sphere with barium sulfate coating. 1000mm internal diameter. An openable hemisphere. UMSH-AP-1000 height-adjustable sample holder. Baffle between the detector and teh sphere center for lamps with an extent of up to 300mm. 12V/100W Halogen auxiliary lamp. Table stand.
-Typical measurement time:
BTS256-LED: max. 1000 lm ≤ 5 ms (white light)
BTS256-LED: min. 10 mlm ≤ 30 s (white light)
-max. luminous flux:
BTS256-LED typ. 70000 lm
BTS256-LED with ISD-100 typ. 32000 lm
-Noise equivalent luminous flux:
BTS256-LED Tester typ. 0.05 mlm
BTS256-LED Tester with ISD-100 typ. 40 mlm
