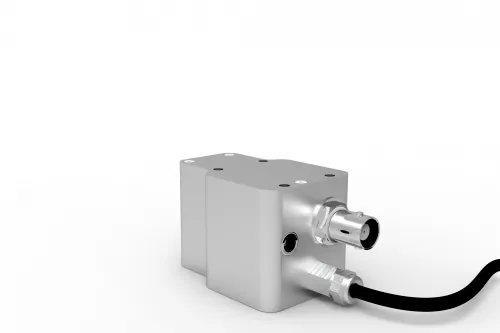

Gigahertz-Optik ISD-1.6-SP-V01-2 ປະສົມປະສານເຄື່ອງກວດຈັບສະເຟຍ (7 mm aperture, 400 - 1100nm)
Measurement ranges: Peak power up to typ. 200 W (fast photodiode, pulsed), typ. 100 W (slow photodiode for absolute measurement), spectral sensitivity range 400 nm to 1100 nm.
Calibration: Factory calibration of the spectral sensitivity of the photodiode for radiant power. Traceable to PTB calibration standards
Port Size: 7 mm
max. Radiant Power (Peak)
fast photodiode: typically 300 W (@ 950 nm, pulsed)
Max. signal current: 1 mA (photodiode used for absolute measurement)
Typical responsivity: 6.0 µA/W @900 nm (slow photodiode)
Spectral range: (400 - 1100) nm
Rise time:
photodiode for puls-shape measurement: <1 ns
photodiode for absolute signal: 100 ns
Weight: 200 g
Temperature range:
Application: (10 to 30)°C
Storage: (-10 to 50)°C
Humidity: The device must not be exposed to high humidity. Range 20% ~ 70% RH not condensing.
