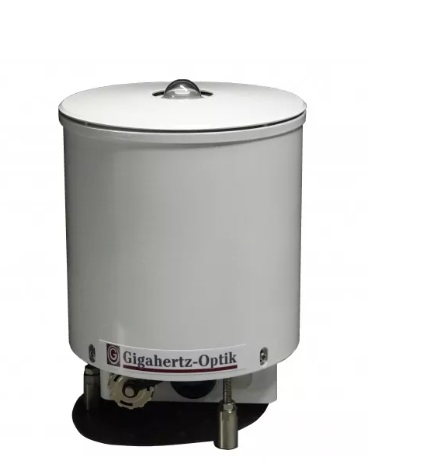

Gigahertz-Optik BTS2048-VL-TEC-WP Spectroradiometer (280 nm ~ 1050 nm)
-Measurement range:
Spectral: 0.5 lx to 1,000,000 lx 280 nm to 1050 nm.
Integral: 0.1 lx Noise signal up to 3E8 lx, photometric 360 nm to 830 nm
-Typical applications: CCD spectroradiometer for scientific measurements, solar cells, outdoor measurements, development tasks.
-Calibration: Factory calibration. Traceable to international calibration standards.
-Measured Quantity: Spectral irradiance (W/(m² nm)), illuminance (lx), peak wavelength, calculated quantities of the spectral power distribution, etc.
-Sensor:
Accuracy class B according to DIN 5032 and CIE No. 69
Accuracy class A for f1`, u, f3 and f4 according to DIN 5032 and CIE No. 69
-Input optics: Diffusor, cosine corrected field of view (f2 ≤ 3%)
-Filter wheel: 4 positions (open, closed, optical filters). Use for remote dark current measurement and dynamic range extension.
-BiTec: Parallel measurement with diode and array is possible, thereby linearity correction of the array through the diode and online correction of the spectral mismatch of the diode through a*(sz(λ)) respectively F*(sz(λ)).
-Calibration uncertainty:
Spectral irradiance
Spectral irradiance responsivity (280 - 1050) nm. Standard calibration (350 - 1050) nm. Optional calibration (280 - 1050) nm.
-Microprocessor: 32bit for device control,16bit for CCD array control, 8bit for photodiode control
-Interface: USB V2.0, Ethernet (LAN UDP protocol), RS232, RS485
-Data transfer: Standard for 2048 float array values via ethernet 7ms, via USB 2.0 140 ms
-Input Interfaces: 2x (0 - 25) VDC, 1x optocoupler isolated 5 V / 5 mA
-Output Interfaces: 2x open collector, max. 25 V, max. 500 mA
-Trigger: Trigger input incorporated (different options, rising/falling edge, delayed, etc.)
-Software: User software S-BTS2048
Optional software development kit S-SDK-BTS2048 for user software set-ups based on .dll‘s in C, C++,C# or in LabView.
-Dimensions: Diameter: 160 mm
Height: 222 mm
-Weight: 2.85 kg
-Mounting:
Tripod and M6 screw threads
Front adapter UMPA-1.0-HL for use with integrating sphere port-frame UMPF-1.0-HL
-Temperature range:
Storage: (-10 to 50)°C
Operation: (10 to 30)°C
-Housing:
Spectroradiometer unit: IP67
Outdoor housing itself: IPx5
-Stability: inside WP housing (electronics): ≤ ±1°C
CCD Chip: ≤ ±0.25°C
