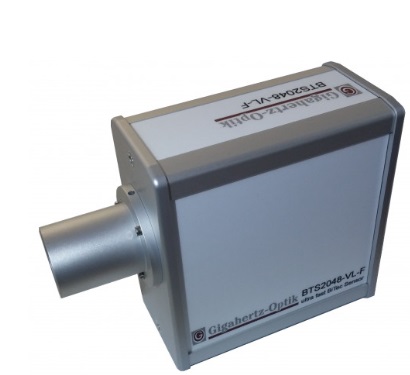

Gigahertz-Optik BTS2048-VL-TEC-F Spectroradiometer (280 -1050 nm)
-Measurement range: Depending on the accessories. Spectral range 280 nm to 1050 nm
-Typical applications: Separate setup of the CCD spectroradiometer and measurement optics. Measurement device with light guide for integration in test systems for front-end and back-end LED binning
-Calibration: Factory calibration. Traceable to international calibration standards
-Measured Quantity:
With light guide and diffusore entrance optics spectral irradiance (W/(m² nm)), illuminance (lx), dominant wavelength, peak wavelength, center wavelength, centroid wavelength, x, y, u´, v´, X,Y,Z, delta uv, color temperature, color rendering index (CRI) Ra, R1-R15. With integrating sphere: in addition spectral flux (W/nm) and luminous flux (lm)
-Sensor:
Accuracy class B according to DIN 5032 and CIE No. 69
Accuracy class A for f1`, u, f3 and f4 according to DIN 5032 and CIE No. 69
-Input optics: Light guide adapter
-Filter wheel: 4 positions (open, closed, OD1, OD2). Use for remote dark current measurement and dynamic range extension.
-BiTec: Parallel measurement with diode and array is possible, thereby linearity correction of the array through the diode and online correction of the spectral mismatch of the diode through a*(sz(λ)) respectively F*(sz(λ)).
-Calibration: Depending on the light guide
-Microprocessor: 32bit for device control,16bit for CCD array control, 8bit for photodiode control
-Interface: USB V2.0, Ethernet (LAN UDP protocol), RS232, RS485
-Data transfer: Standard for 2048 float array values via ethernet 7ms, via USB 2.0 140 ms
-Input Interfaces: 2x (0 - 25) VDC, 1x optocoupler isolated 5 V / 5 mA
-Output Interfaces: 2x open collector, max. 25 V, max. 500 mA
-Trigger: Trigger input incorporated (different options, rising/falling edge, delayed, etc.)
-Software:
User software S-BTS2048
Optional software development kit S-SDK-BTS2048 for user software set-ups based on .dll‘s in C, C++,C# or in LabView.
-Power Supply:
With power supply: DC Input 5V (±10 %) at 700 mA
With USB bus (500mA)
-Dimensions: 103 mm x 107 mm x 52 mm (Length x Width x Height)
-Weight: 500g
-Mounting:
Tripod and M6 screw threads
Front adapter UMPA-1.0-HL for use with integrating sphere port-frame UMPF-1.0-HL
-Temperature range:
Storage: (-10 to 50)°C
Operation: (10 to 30)°C
