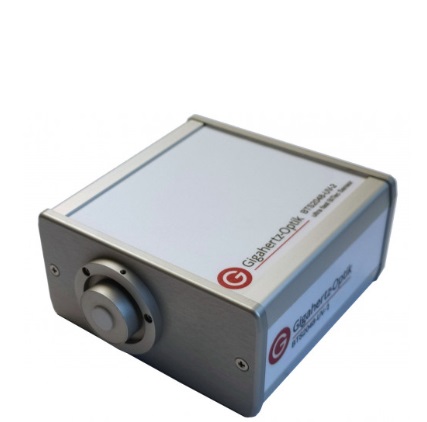

Gigahertz-Optik BTS2048-UV-2 Spectroradiometer (200 - 550 nm)
-Measurement range:
Spectral: 2E-5 W/(m²nm) to 1.5E4 W/(m²nm) @325nm. Responsivity from 200 nm to 550 nm.
-Typical applications: CCD spectroradiometer for design applications. Module for integration in test systems for front-end and back-end LED testing.
-Calibration: Factory calibration. Traceable to international calibration standards
-Typical applications: Lightmeter for spectral Irradiance, Erythema, etc.
-Measured Quantity: Spectral irradiance (W/(m² nm)), irradiance (W/m²), peak wavelength, center wavelength, centroid wavelength, Erythema. Option integrating sphere: in addition spectral radiant power (W/nm) and radiant power (W)
-Input optics: Diffusor, cosine corrected field of view (f2 ≤ 3%)
-Filter wheel: 4 positions (open, closed, optical filters). Use for remote dark current measurement and stray light reduction.
-BiTec: Parallel measurement with diode and array is possible, thereby linearity correction of the array through the diode and online correction of the spectral mismatch of the diode through a*(sz(λ)) respectively F*(sz(λ)).
-Calibration uncertainty:
Spectral irradiance
Spectral irradiance responsivity (200 - 550) nm
-Microprocessor: 32bit for device control,16bit for CCD array control, 8bit for photodiode control
-Interface: USB V2.0, Ethernet (LAN UDP protocol), RS232, RS485
-Data transfer: Standard for 2048 float array values via ethernet 7ms, via USB 2.0 140 ms
-Input Interfaces: 2x (0 - 25) VDC, 1x optocoupler isolated 5 V / 5 mA
-Output Interfaces: 2x open collector, max. 25 V, max. 500 mA
-Trigger: Trigger input incorporated (different options, rising/falling edge, delayed, etc.)
-Software: User software S-BTS2048
Optional software development kit S-SDK-BTS2048 for user software set-ups based on .dll‘s in C, C++,C# or in LabView.
-Power Supply:
With power supply: DC Input 5V (±10%) at 700 mA
With USB bus (500mA)
-Dimensions: 103 mm x 107 mm x 52 mm (Length x Width x Height)
-Weight: 500g
-Mounting:
Tripod and M6 screw threads
Front adapter UMPA-1.0-HL for use with integrating sphere port-frame UMPF-1.0-HL
-Temperature range:
Storage: (-10 to 50)°C
Operation: (10 to 30)°C
