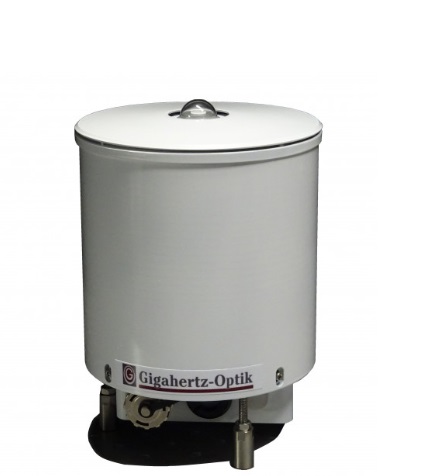

Gigahertz-Optik BTS2048-IR-WP Spectroradiometer (950 -2150 nm)
-Measurement range:
Spectral: 2E-4 W/(m²nm) to 1E4 W/(m²nm) @1600 nm. Responsivity from 950 nm to 2150 nm.
-Typical applications: Diode array spectroradiometer for R&D applications and for the integration in testing systems.
-Calibration: Factory calibration. Traceable to international calibration standards.
-Measured Quantity: Spectral irradiance (W/(m² nm)), irradiance (W/m²), spectral radiant intensity (W/(sr nm)), radiant Intensity (W/sr), peak wavelength, center wavelength, centroid wavelength, etc.. Option integrating sphere: in addition spectral flux (W/nm). Option goniometer:
-Input optics: Diffusor, cosine corrected field of view
-Filter wheel: 4 positions (open, closed, optical filters). Use for remote dark current measurement and dynamic range extension.
-BiTec: Parallel measurement with diode and array is possible, thereby linearity correction of the array through the diode and online correction of the spectral mismatch of the diode through a*(sz(λ)) respectively F*(sz(λ)).
-Calibration uncertainty:
Spectral irradiance
Spectral irradiance responsivity (950 - 2150) nm
-Microprocessor: 32bit for device control,16bit for CCD array control, 8bit for photodiode control
-Interface: USB V2.0, Ethernet (LAN UDP protocol), RS232, RS485
-Data transfer: Standard for 512 float array values via ethernet 5 ms
-Input Interfaces: 2x (0 - 25) VDC, 1x optocoupler isolated 5 V / 5 mA
-Output Interfaces: 2x open collector, max. 25 V, max. 500 mA
-Trigger: Trigger input incorporated (different options, rising/falling edge, delayed, etc.)
-Software: User software S-BTS2048
Optional software development kit S-SDK-BTS2048 for user software set-ups based on .dll‘s in C, C++,C# or in LabView.
-Power Supply:
With power supply: DC Input 5V (±10 %) at 3000 mA
-Dimensions: Diameter: 160 mm
Height: 242 mm
-Weight: 1000g
-Mounting:
Tripod and M6 screw threads
Front adapter UMPA-1.0-HL for use with integrating sphere port-frame UMPF-1.0-HL
-Temperature range:
Storage: (-10 to 50)°C
Operation: (-25 to <45)°C
-Temperature range: Temperature stabilization chip: ≤ ± 0.25°C
