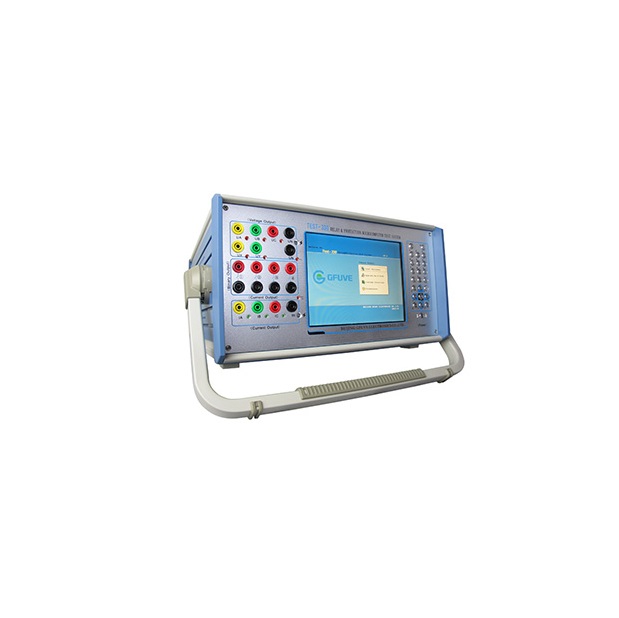

GFUVE TEST-330 ລະບົບທົດສອບ Microcomputer ການປົກປ້ອງ Relay ສາມໄລຍະ (AC220V±10%; 50/60Hz±10%)
ELECTRICAL PARAMETERS
Power voltage: AC220V±10% or AC110V±10%, 50/60Hz±10%
Time measurement: 0.1ms-999999.999s
AC current output
Phase current output (effective value): 3 x 0-30A
Maximum power output: 260VA/phase
Maximum parallel current output (effective value): 0-90A
Long-term allowable working value of phase current (effective value): >10A
Allowable working time of maximum current: >11s
Accuracy class: <±0.2%
AC voltage output
Phase voltage output (effective value): 5 x 0-130V
Line voltage output (effective value): 0-260V
Maximum power output: 70VA/phase
Accuracy class: <±0.2%
DC current output
Output range: -10 ~ 10A or 3 x 0 ~ ±10A
Maximum power output: 200VA
Accuracy class: <±0.2%
DC voltage output
Output range: 0-300V or 5 x 0 ~ ±130V
Maximum output power: 130VA
Accuracy class: <±0.2%
DC current output
Idle contact: 1-20mA, 24V (DC)
Electric potential contact: 250V/0.5A (DC)
Binary output
Idle contact: 250V/0.5A (DC)
Rated output
Frequency error: <±0.01Hz
Phase error: <±0.2°
Waveform distortion: <±0.3% (fundamental wave)
Time error: <40µs
Output frequency: 0-1050Hz
Superposed harmonic wave: 0-21 times
MECHANICAL PARAMETERS
Dimensions (L×W×H) (mm): 360x195x375
Weight (kg): 16.6
ENVIRONMENTAL CONDITIONS
Use range: 0°C ~ 45°C
Storage range: -25°C ~ 70°C
