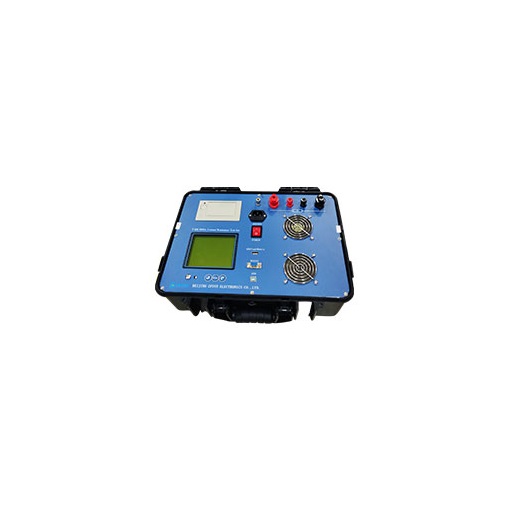

GFUVE T-216 Portable 600A Contact Test Resistance Test Set (0-3000.0μΩ)
ELECTRICAL PARAMETERS
Power supply: Single phase AC 220V±10% or 110V±10%, 50/60HzAC
Cooling way: intermittent air cooled
Current output: constant current: 100A, 200A, 300A, 400A, 500A, 600A.
Test time: 100A: 5-60Sec, 200A：5-30Sec, 300A-600A: 5-10Sec
Test range: 0-20000.0μΩ (100A); 0-10000.0μΩ (200A); 0-6000.0μΩ (300A); 0-5000.0μΩ (400A); 0-4000.0μΩ (500A); 0-3000.0μΩ (600A)
Accuracy: 0.5%±2bit
Resolution: 0.1μΩ
Max storage volume: 200
LCD: 5.7″black and white LCD display
Communication: RS232 and USB communication interface
Printer: internal installed 58mm wide thermal printer
Standard: DL/T 596-2005, IEC61010-1, IEC61326-1
MECHANICAL PARAMETERS
Dimension (L×W×H) (mm): 490x345x185
Weight (kg): 14
ENVIRONMENTAL CONDITIONS
Operating temperature: -10°C ~ 50°C
Storage temperature: -20°C ~ 70°C
Relative humidity: ≤85%RH
