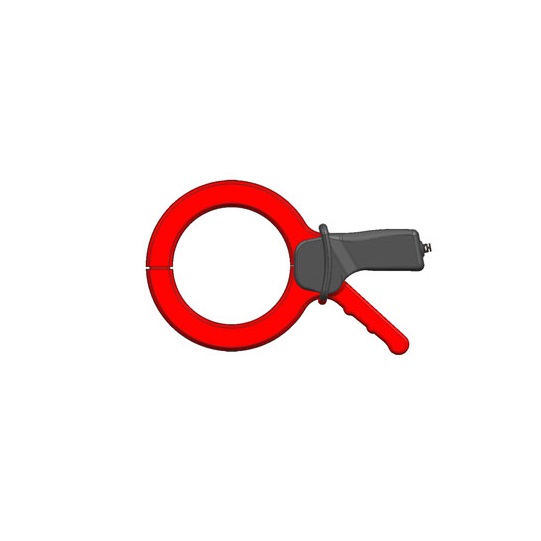

GFUVE S120 20K Hz Bandwidth 2000A Clamp ເທິງຫມໍ້ແປງປະຈຸບັນ (2400A, 10Hz-2MHz)
ELECTRICAL PARAMETERS
Ratio: 1000: 1 or 2000:5 (customized)
Accuracy class: 0.1%, 0.2%, 0.5%
Primary current: 0 - 2000A AC
Secondary current: 0-2A or 0 - 5A AC (customized)
Secondary voltage: 0-2V AC (customized)
Max. Cont. Input current: 2400A
Over voltage category: CAT III 600V
Output signal (AC current): 500mA, 1A,2A,5A AC at nominal input current
Output signal (AC voltage): 1V, 2V, 10V AC at nominal input current
Frequency range: 10Hz-2MHz
Dielectric strength: 3KV 50Hz/60Hz at 1 minute
Temperature range: -40°C to +55°C
Output: 2.5 meter cable with D01 connector or BNC
Max. voltage not insulated conductors: 600 V
Standard: EN 61010-1, EN 61010-2-032, IEC60044-1, IEC61869-2
Installation: clamp type
Output mode: lead output(2.5m, 5m or 10m)
Accuracy (2000A Range)
0-10A: ≤0.5%
10-100: ≤0.2%
100-2000A: ≤0.1%
Phase Shift(2000A Range)
0-10A: ≤0.5°
10-100: ≤0.2°
100-2000A: ≤0.1°
MECHANICAL PARAMETERS
Dimensions (L x W x H) (mm): 178 x 290 x 30
Weight (g): 1200
Holding wire diameter (mm): φ120
Max. jaw opening (mm): 120
Jaw color: Red & Grey
Material: PC+ABS, UL94 V0
