Electrical parameters
Ratio: 1000: 1 or 2000:1 (customized)
Accuracy class: 0.1%, 0.2%, 0.5%
Primary current: 0 - 500A AC
Secondary current: 0 - 1A AC or 0-5V AC (customized)
Max. Cont. Input current: 600A
Over voltage category: CAT III 600V
Output signal (AC current): 250mA,500mA,1A,5A AC at nominal input current
Output signal (AC voltage): 250mV, 500mV, 1V, 5V AC at nominal input current
Frequency range: 40Hz-2000Hz
Dielectric strength: 3KV 50Hz/60Hz at 1 minute
Temperature range: -20°C to +55°C
Output: 2.5 meter cable with D01 connector
Max. voltage not insulated conductors: 600 V
Standard: EN 61010-1, EN 61010-2-032, IEC60044-1

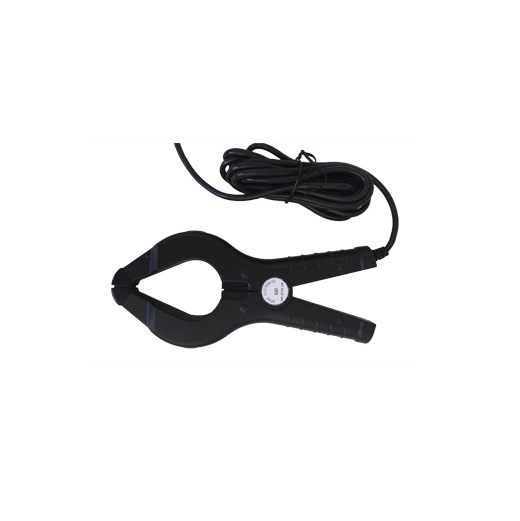

Installation: Clamp type
Output mode: Lead output (2.5m)
Mechanical parameters
Dimensions (L x W x H)(mm): 82 x 290 x 25.3
Weight (g): 500
Holding wire diameter (mm): φ40
Max. jaw opening (mm): 40
Color: Black
Material: PC+ABS+Polycarbonate, UL94 V0
