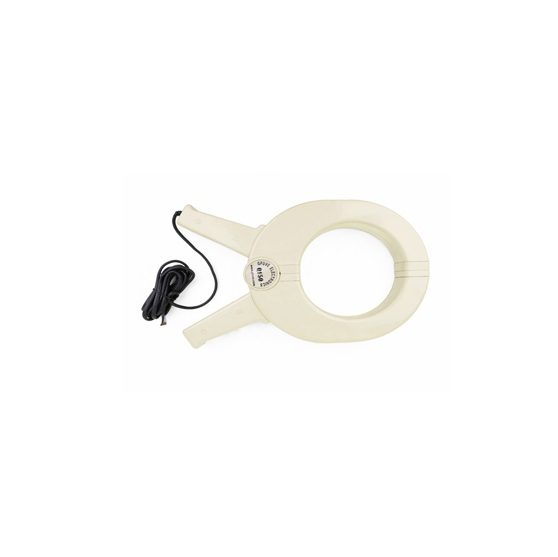

GFUVE Q150 150MM Bus Bar And Cable AC Split Core CT Current Probe Clamp (6000A)
ELECTRICAL PARAMETERS
Ratio: 1000: 1 or 2000:1 (customized)
Accuracy class: 0.2%, 0.5%, 1%
Primary current: 0 - 5000A AC
Secondary current: 0 - 5A AC (customized)
Max. Cont. Input current: 6000A
Over voltage category: CAT III 600 V
Output signal (AC current): 500mA,1A,5A AC at nominal input current
Output signal (AC voltage): 333mV,500mV,1V,5V AC at nominal input current
Frequency range: 40Hz-2000Hz
Dielectric strength: 3KV 50Hz/60Hz at 1 minute
Temperature range: -20°C to +55°C
Output: 2.5 meter cable with D01 connector
Max. voltage not insulated conductors: 600 V
Standard: EN 61010-1, EN 61010-2-032, IEC60044-1
Installation: Clamp type
Output mode: Lead output(2.5m)
MECHANICAL PARAMETERS
Dimensions (L x W x H) (mm): 229x364x 44
Weight (g): 1700
Holding wire diameter (mm): φ150
Max. jaw opening (mm): 150
Jaw color: White
Material: PC+ABS+Polycarbonate, UL94 V0
