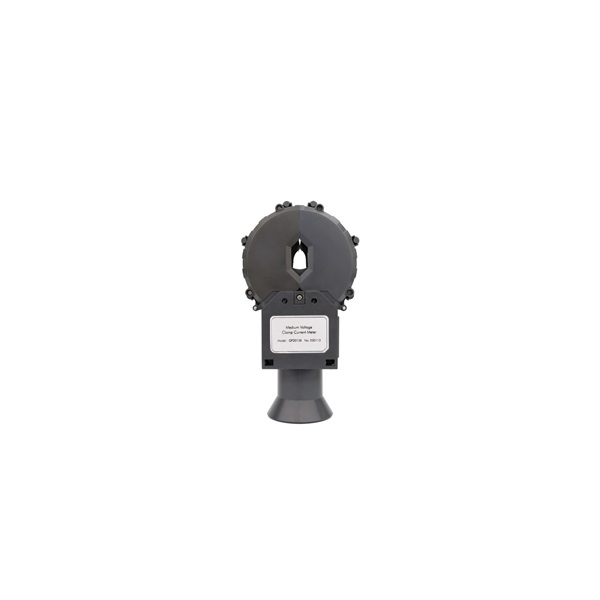

GFUVE GF2015 ເຄື່ອງວັດແທກເຄື່ອງບັນທຶກກະແສໄຟຟ້າປະຖົມໄຮ້ສາຍ
Basic parameters
Recording ammeter kit:
3 wireless current sensors (GF2015A, GF2015B, GF2015C)
433 HHT(handheld terminal) or 433M wireless data reader(GF2015R)
PC-LinkSoftware software(GF2015S)
Carrying case
Data recording interval:
5min, 10min,15min, 30min;
Interval user settable from 1-60min
Communication distance(wireless): 100m
Communication: 433M, 868M or 915M (option)
Installation: Installation with electricity; Disassemble with electricity
Battery: 3.6 volt lithium battery,19000mAh; Battery can be replaced
Software requirements: PC-Linksoftware & microsoft Excel
Processor: 100 MHz or higher ( 200 MHz or higher recommended)
RAM: 32 MB, 64M recommended
Drive space: 15 MB to load software, 10 MB of operating Space
Use of position: Outdoor or indoor
Electrical parameters
Range of operation
Voltage: 69kV,35kV,20KV, 10kV, 6kV
Current: 1 to 100A, 1 to 300A, 1 to 600A, 1 to 1000A, 1 to 2000A
Sensor opening: Up to 2.5 cm
Resolution
1 to 99.9A: 0.1A
100 to 2000A: 1A
Amps accuracy : ±1% of reading plus 2 counts
Frequency: 60Hz (57-63 Hz) or 50Hz (47-53 Hz) models available
Mechanical parameters
Dimensions (W×D×H) (cm): 18x9.5x4.62
Weight (kg): 0.58
Environmental conditions
Operating temp.: -40°C to 60°C
