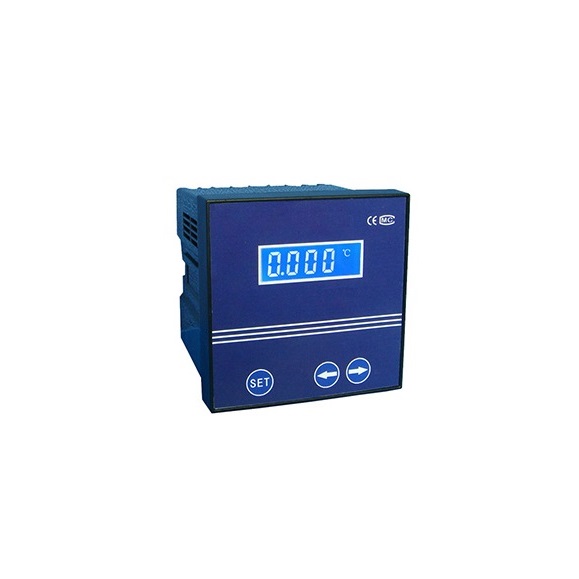

GFUVE FU8X6X DC 4-20Ma Output Temperature Digital Display Meter
Programmable: address, baud rate and other parameters.
Accuracy: 0.5 class
Display figures: 4 bits (4½ bits for DC)
Rated input: Temperature: PT100,J,K,T,E thermocouple.
Power supply: AC220V ± 20% or DC100-300V (Customization)
Power consumption: <3VA
Insulation strength: 2KV/Min. 2mA
Insulation resistance: ≥100MΩ
MTBF: ≥50000Hrs
Working Environment:
Temperature: -25 ~ +55℃
Humidity: ≤98% RH, without condensation
Real-time output: DC4-20mA, load capacity: ≤400Ω
Data output: RS485 port (Modbus-RTU protocol)
Switching input: Remote signal input (self power supply): AC or DC 220V
Switching output (Self-control): Normally open contact output: AC 250V / DC 30V, 5A
