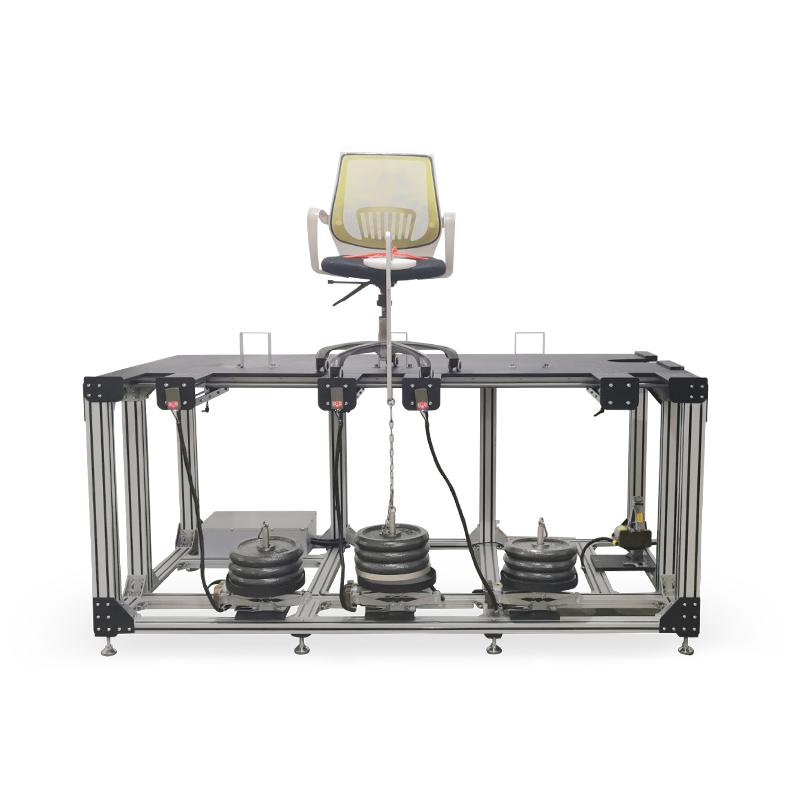

GESTER GT-LB06B BIFMA X5.1 ເຄື່ອງທົດສອບຄວາມຫມັ້ນຄົງຂອງ Lounger (600N)

Test load: 600N (135 lbf.) (Accumulated weight)

Loading point number: 3 point

Loading point: Seat surface center, 60mm from front edge

Weights basket: Manual controlled lifting

Seat surface load pad: Diameter: 200mm, camber surface: R300mm

Loading rod:

Diameter: 19mm

End: A type: Spherical SR19mm / B type: 45°Taper

Dimensions: 2405x1070x1557mm

Weights: ≈700Kg

Standard Accessories

Weights basket: 3 pc

Seat surface load pad: 3 pc

600N Load weights: 3 Set

Weights holding device: 3 pc

Option Accessories

FB-200N IMADA push pull scale

500N Load weights for EN 1335-3-2009 Section 7.1.3
