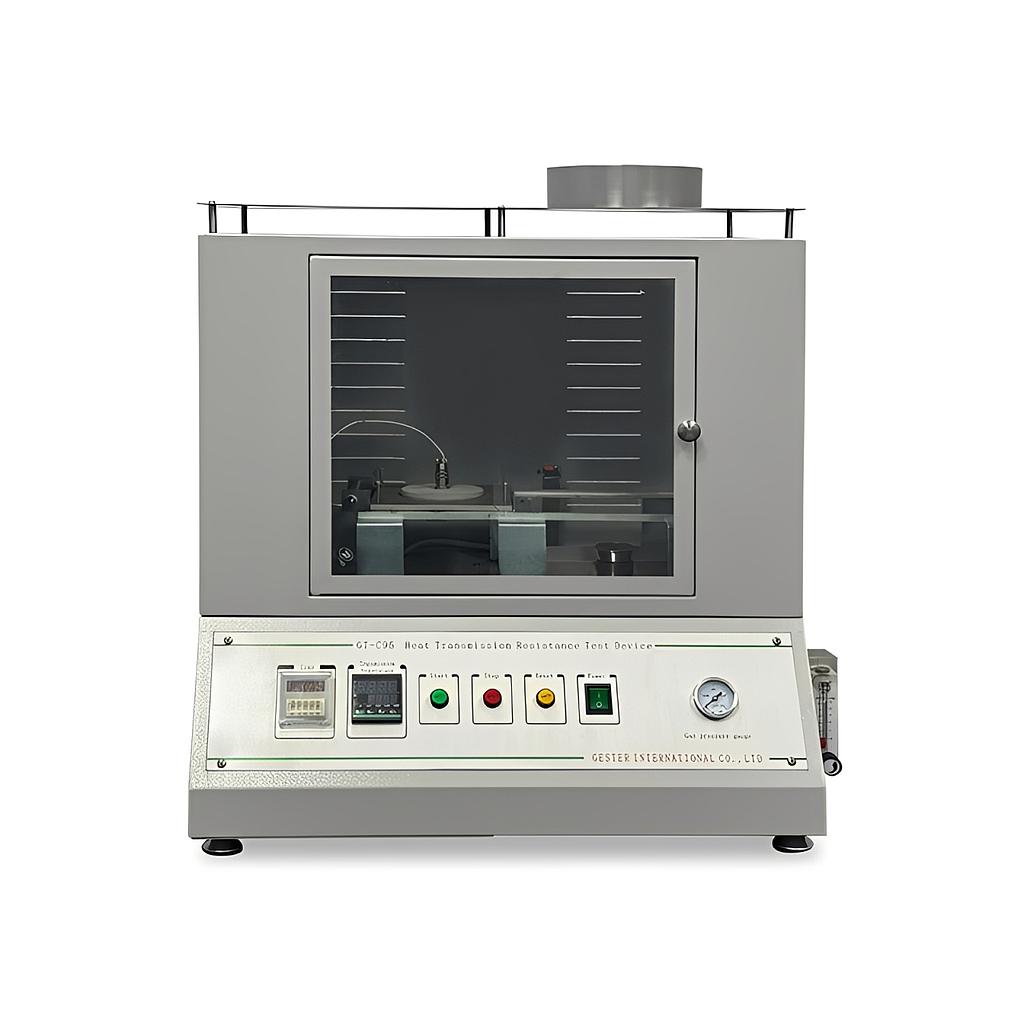

GESTER GT-C95 ອຸປະກອນທົດສອບຄວາມຕ້ານທານການສົ່ງຜ່ານຄວາມຮ້ອນ (≥40 kW/m², 20–200 °C)

Heat Source: Liquefied Petroleum Gas

Density of Heat Flow Rate: ≥40 kW/m²

Counting Range: 0 ~ 100 s

Temperature Measure Range: 20°C ~ 200°C

Sample Dimension: 145 × 145 mm

Calorimeter Diameter: Φ40 mm

Power Supply: 1Ø AC 220V, 50/60 Hz, 1.5 kW

Standards: EN 367, ISO 9151

Accessories

Standard Accessories:

Clamp: 1 pc

Power Line: 1 pc

Optional Accessories:

Pneumatic Sample Cutter GT-C48: Optional

Cutting Die: Optional

Can be digital display flame temperature, measurement temperature, time.

The burner is suitable for combustion of oil gas in the flame nozzle, air holes in Inner-Ring-and-Outer-Ring, calorimeter located inside holes on upper sample holder, which directly touch with sample.
