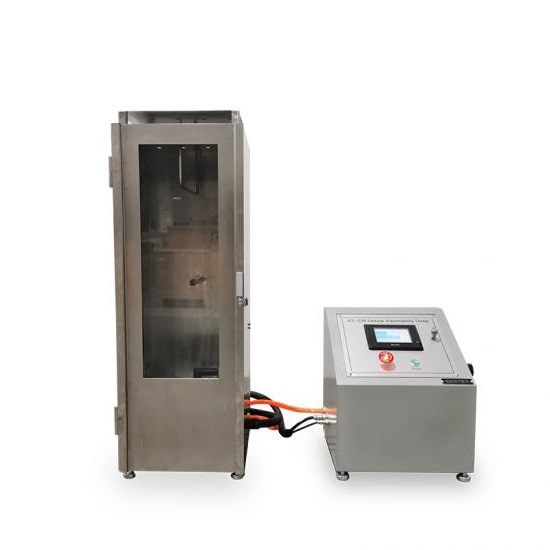

GESTER GT-C35A-1 ສະພາການຕິດໄຟໃນແນວຕັ້ງ

After flame time: 0-999.9s resolution 0.01s

After glow time: 0-999.9s resolution 0.01s

Burning time: 12s (adjustable)

Nozzle:

Inner diameter: 11mm

Angle: 65°C

Dimension of specimen holder

Out frame: 422*89*2mm

Inner frame: 356x51mm

Testing flame height: 40±2mm

Distance between nozzle top and specimen: 17mm

Tearing weights: 54.4g, 113.4g, 226.8g, 340.2g

Power supply: AC 220V 50/60hz

Dimensions: 600x450x885mm (LxWxH)

Weight: 44kg

Standards: CFR1615, CFR1616, GB/T 5455

Standards accessories: 4 x Tearing weights, 1 x Air supply device, 1 x Sample holder, 1 x Flame measuring scale, 1 x Power line

Optional accessories: Φ11mm Nozzle, Φ10mm Nozzle, CFR1615,1616 holder and tear weights, ASTM D6413 holder and tearing weights, CALIF TB-117 holder
