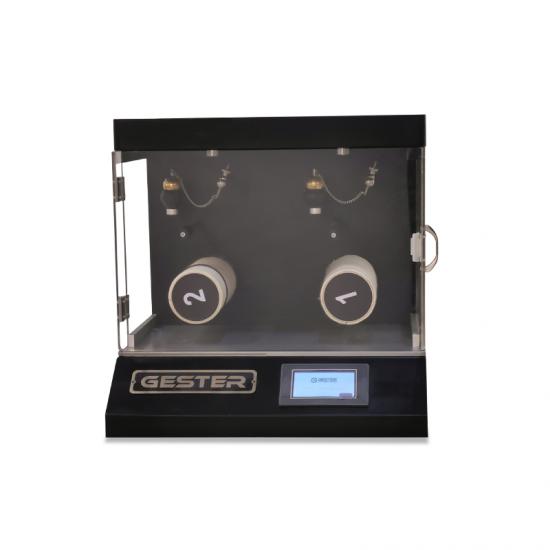

GESTER GT-C17A ICI Mace Snagging Resistance Tester

Working position: 2

Speed: 60rpm+/-2rpm

Testing cylinder: Φ82mm, Width: 210mm

Mace ball: Weight: 160+/-10g, 11 maces

Mace: Length: 10±1mm, Tip radius: RO.13mm

Counter: 0-99999

Felt: Thickness: 3~3.2mm; Width: 165±1mm

Distance between nail hammer and guide rod: 45±1mm

Power supply: AC 220V 50/60OHZ

Dimensions (LXWXH): 945 x 420 x 480mm

Standard accessories: 2 x Felt sleeves, 4 x Rubber rings, 1 x Power line

Optional accesories: Tungsten carbide maces, Standard photographs, GT-C78 pilling assessment box
