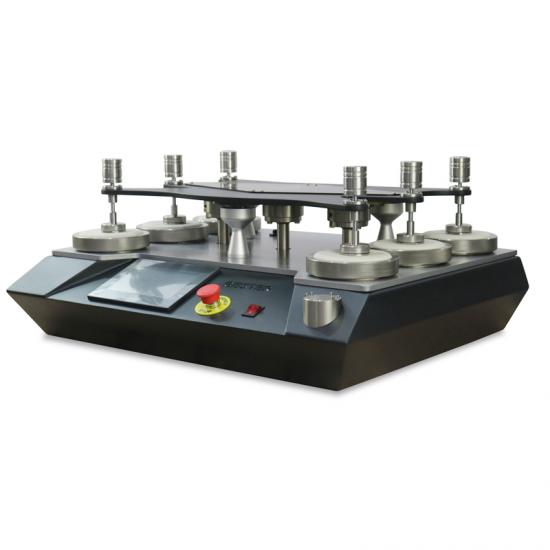

GESTER GT-C13B-6 Martindale Abrasion ແລະ Pilling Tester
Working positions: 6
Control mode: PLC control and touch screen display
Counter range: 0~999999 times
Test pressure:
- Abrasion test:
A) Specimen holder: (198 ±2)g
B) Larger loading piece: (597±5)g
C) The sum mass: (795± 7)g, for workwear, upholstery, bed linen and fabrics for technical use ( nominal pressure of 12kpa)
A) Specimen holder: (198 ±2)g
B) Smaller loading piece: (397±5)g
C) The sum mass: (595± 7)g, for apparel and household textiles, excluding upholstery and bed linen (nominal pressure of 9kpa)
- Pilling test:
A) Stainless steel loading piece: (155 ± 1) g
B) Specimen holder: (260 ± 1)g
C) The sum mass: (415± 2)g
Holder effective diameter:
Abrasion Holder : Φ(28.65 ± 0.05)mm
Pilling Holder : Φ(90 ± 0.10)mm
Rotational speed: 50± 2r/min
Pressing weight:
Mass : (2.5 ± 0.5) kg
Diameter: Φ(120 ± 10) mm
Power supply: AC220V 50/60Hz
Dimensions(L x W x H): 88×61×41cm
Weight: 130kg
